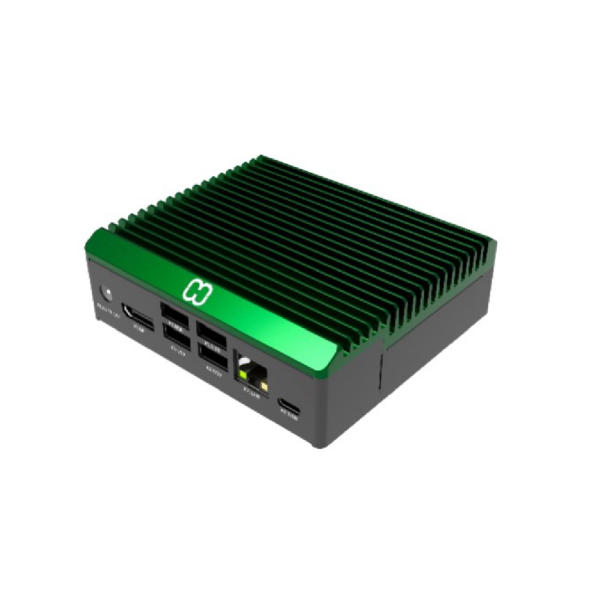

MARC-11

NVIDIA Jetson Orin Nano AI PC
Mitwell AI Fanfree Computer

MARC-11
MARC-11 - 画像 (2)

Features

  • Jetson Orin Nano 8GB module
  • Ampere GPU accelerates AI
  • Versatile IO interface options
  • 8GB high-speed LPDDR5 memory
  • External storage expansion support
MARC-11 is a rugged edge-AI system designed for harsh industrial environments. It features a fanless, dust-resistant design and is built on the NVIDIA Jetson Orin Nano Super Developer Kit, delivering up to 41 TOPS of AI performance. MARC-11 is capable of running advanced edge AI workloads such as generative vision transformers, large language models, and vision-language models, while supporting NVIDIA’s AI software stack to accelerate development.

General
AI Performance UP to 41 TOPS
GPU NVIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory 8GB 128-bit LPDDR5
102GB/s
Storage Supports SD card slot and external NVMe
Video Encode 1080p30 supported by 1-2 CPU cores
Video Decode 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
Power 15W
Reference Carrier Board
Camera 2x MIPI CSI-2 22-pin camera connectors
PCIe M.2 Key M slot with x4 PCIe Gen3
M.2 Key M slot with x2 PCIe Gen3
M.2 Key E slot
USB USB Type-A connector: 4x USB 3.2 Gen2
USB Type-C connector for UFP
Networking 1xGbE connectorz
Display 1x DP 1.2 (+MST) connector
Other I/O 40-pin expansion header (UART, SPI, I2S, I2C, GPIO) 12-pin button header
DC power jack
Mechanical 110 (W)mm x 100 (D)mm x 35 (H)mm  Standard
132 (W)mm x 100 (D)mm x 36 (H)mm  With mounting kit
Operation Temp 0~40 degree
