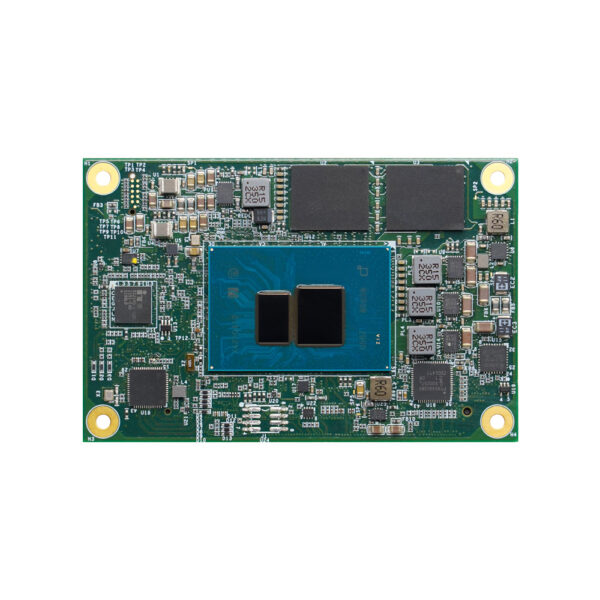

MCM-M31

COM Express®Type 10 Module with Intel® Amston Lake family processor

Features

  • Intel® Astom™ x7000RE ® processor family
  • Support 24-bit LVDS, DP/DP++ output
  • Support Four PCI Express Gen3 lanes
  • Support two USB 3.0, eight USB 2.0
  • Options for eMMC 5.1 storage
MCM-M31は、84 x 55 mmのコンパクトなCOM Express® Type 10モジュールで、Intel Atom® Amston Lake x7000REプロセッサファミリーのパワーを活用しています。この堅牢なアーキテクチャを基に、MCM-M31は24ビットLVDSおよびDP/DP++出力を備え、4つのPCI Express Gen3レーンを介した高速データ転送機能を提供します。ACPI 5.0電源管理規格に準拠しており、USB 3.0、USB 2.0、SATA、LPC、I2C、WDT、SPI、GPIO、ファン制御、デュアルUARTなど、広範なI/Oインターフェースもサポートしています。自動化、医療、リテール、輸送などのさまざまなアプリケーションの要求に対応するよう設計されており、MCM-M31は組み込みシステム向けに信頼性の高い効率的なソリューションを提供します。



General
CPUIntel® Atom® x7211RE, Dual cores, 6W TDP
Intel® Atom® x7213RE, Dual cores, 9W TDP
Intel® Atom® x7433RE, Quad cores, 9W TDP
Intel® Atom® x7835RE, Octa cores, 12W TDP
StorageSupport onboard eMMC 5.1 flash up to 256GB
MemoryOnboard 4G/ 8G/16G LPDDR5 with 4800 MT/s
Single memory channel, 32bit x 2
In Band-ECC (Intel® Atom® CPU)
Ethernet1x 2.5GbE with Intel® I226IT
DisplayPort Interface
DDIA24-bit Dual Channel LVDS up to 1920×1080@60Hz
DDIBDisplayPort / DP++ 1.4, up to 4K(4096×2304)@60Hz
AudioIntel® HD Audio integrated in SoC
I/O interfaces
PCIe4x PCIe Gen3
USB2x USB3.0, 8x USB2.0
SATA2x SATA 3.2
Video Interface
GPU Feature SupportIntel® Gen 12 UHD Graphics driven by Intel Xe architecture | OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding AVC/H.264/MPEG2/VP9/VC-1/WMV9G/MPEG, HEVC/H.265
HW accelerated video encode: AVC/H.264, MPEG2, HEVC/H.265/VP9/JPEG HDCP 1.4/2.2 content protection
Other Interfaces1x LPC, 1x I2C, 1x WDT, 1x SPI, 8x GPIO, 1x FAN control, 2x UART (TX/RX)
Embedded BIOS
Embedded BIOSAMI UEFI with Fast Boot support l Display Auto Detection l
Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form FactorPICMG COM.0 R3.1
COM Express Type 10 Mini Module
Dimension84 mm x 55 mm
Operating TemperatureIndustrial: -25°C to +85°C, w/ 0.5m/s airflow
Humidity0-95% RH, non-condensing
Power ManagementACPI 5.0 compliant
Power Input4.75V~20V
Operating System
Standard SupportMicrosoft® Windows 10 IOT
By project request: Yocto LTS kernel 2022
