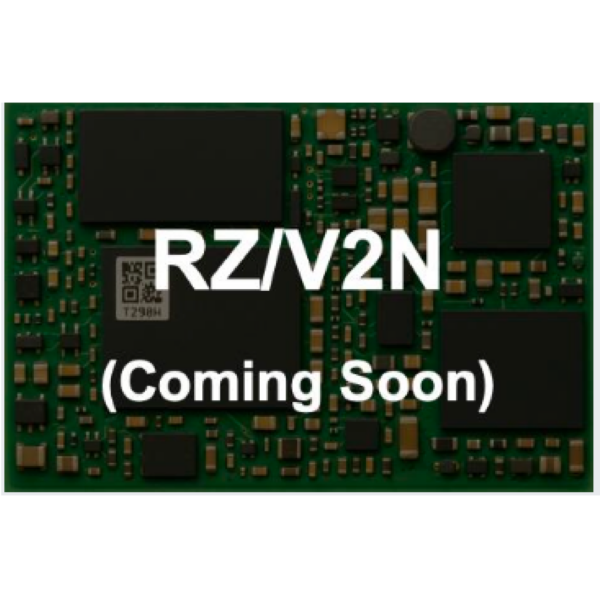

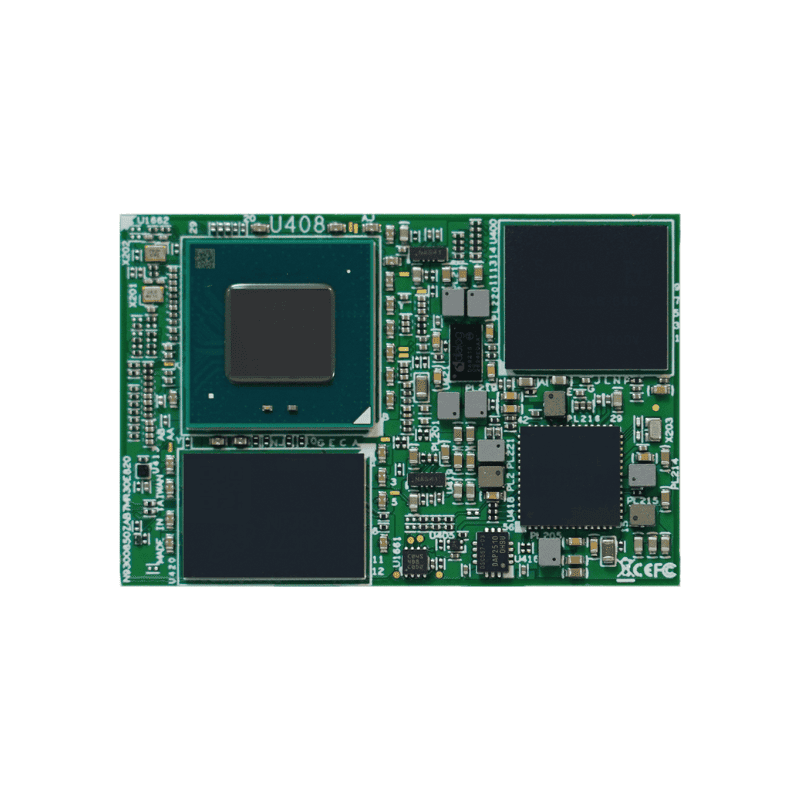

MOSM-MR30E

OSM-M with Renesas RZ/ V2N processor

MOSM-MR30E

Features

  • RZ/ V2N with 4x Cortex®-A55 (1.8GHz) and Cortex®-M33
  • AI Accelerator DRP-AI3 upto 15TOPS at Sparse
  • High power efficiency: 10TOPS/W
  • LPDDR4X Memory Interface
  • PCIe Interface (PCIe x1 Gen3)
  • OSM standard v1.2 Size-M with 476-pin
The OSM-M with Renesas RZ/V2N processor integrates 4x Cortex®-A55 (1.8GHz) cores and a Cortex®-AI Accelerator DRP-AI3 delivering up to 15 TOPS, featuring LPDDR4X memory interface, PCIe Gen3 x1 support, and compliant with OSM v1.2 Size-M 476-pin standard.

Supports Type-C ALT mode

General
OSM Standard v1.2Support OSM Size-M SoC module
CPU4x Arm Cortex-A55 @ 1.8GHz
1x Arm Cortex-M33 @ 200MHz
StorageeMMC 64GB
Memory8G onboard LPDDR4X
Power Input5V DC
Operating SystemsLinux Yocto
I/O Interface
Audio2x I2S
PCIe1x PCIe Gen3
USB1x USB OTG
1x USB 2.0
1x USB 3.0
Display1x 4 lanes DSI
VideoIntegrated in SoC
Camera2x 4 lanes CSI
Ethernet2x GbE LAN (RGMII)
Other Legacy I/O5x UART(1x console)
16x GPIO
1x SPI2x SDIO
2x CAN
1x PWM x4
2x ADC
1x JTAG
Mechanical
Form FactorSGeT OSM Specification v1.2
OSM size M

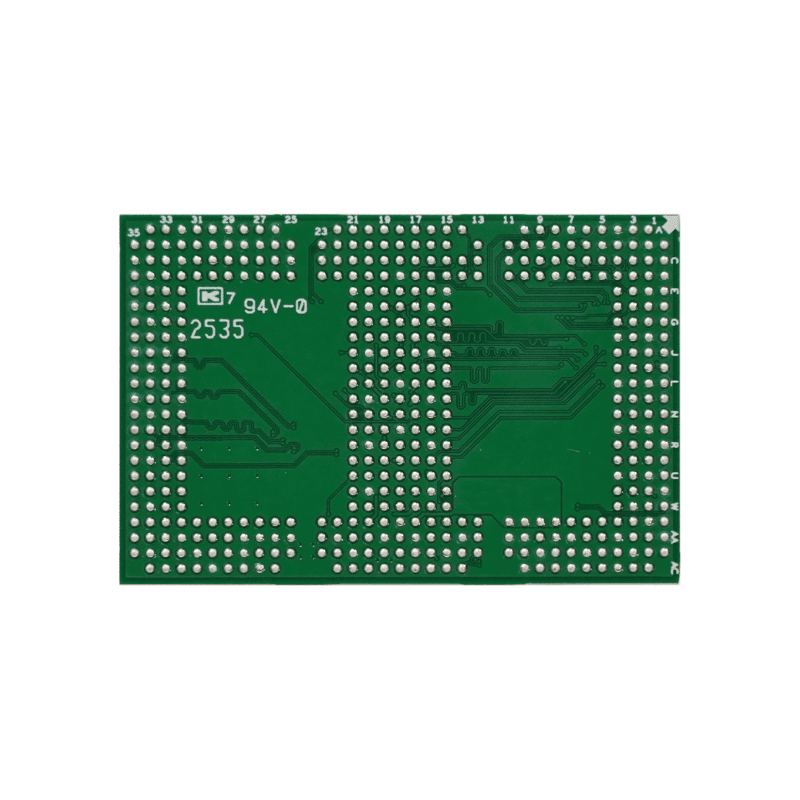

476 pins
Dimension30mm(L) x 45mm (W)
Environmental
Operating Temperature -20°C ~ 85°C
Relative Humidity5 %~ 95 % RH (non-condensing)
