MOSM-MR30E-M

OSM-M with Renesas RZ/ V2N processor

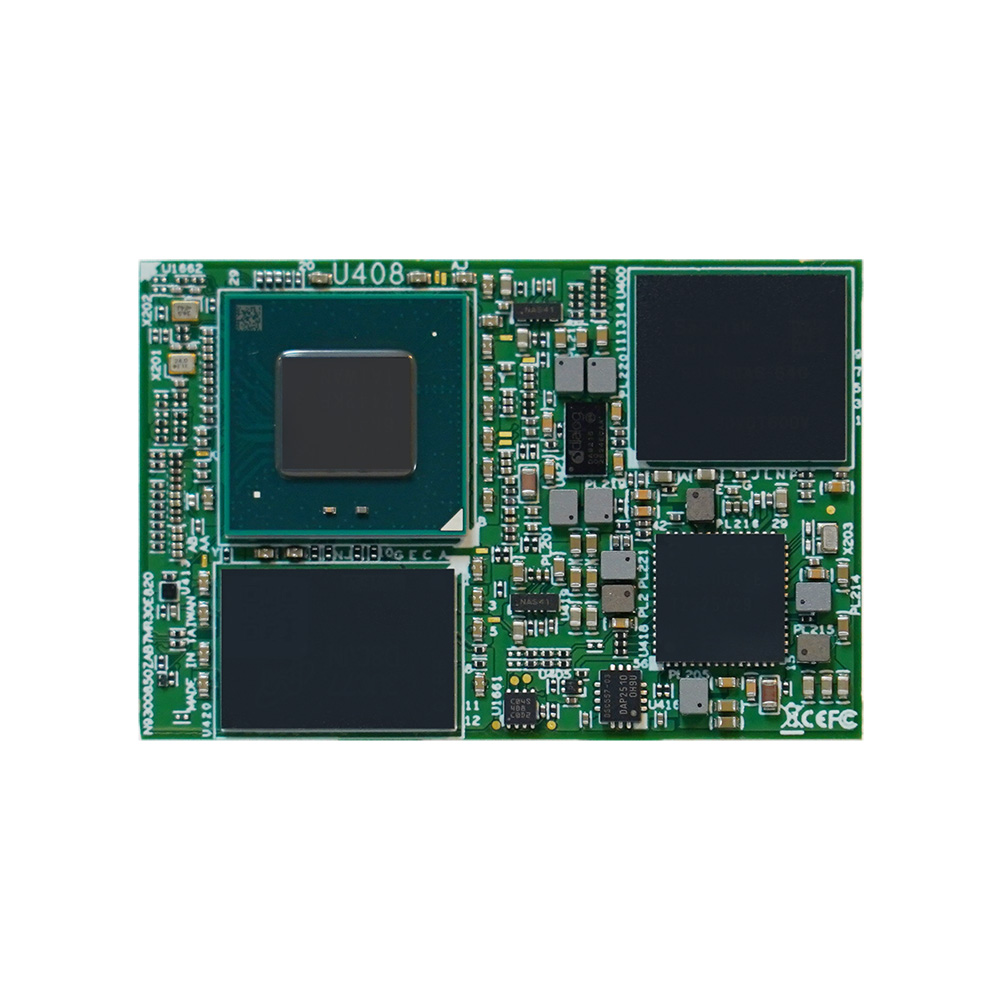

MOSM-MR30E-M

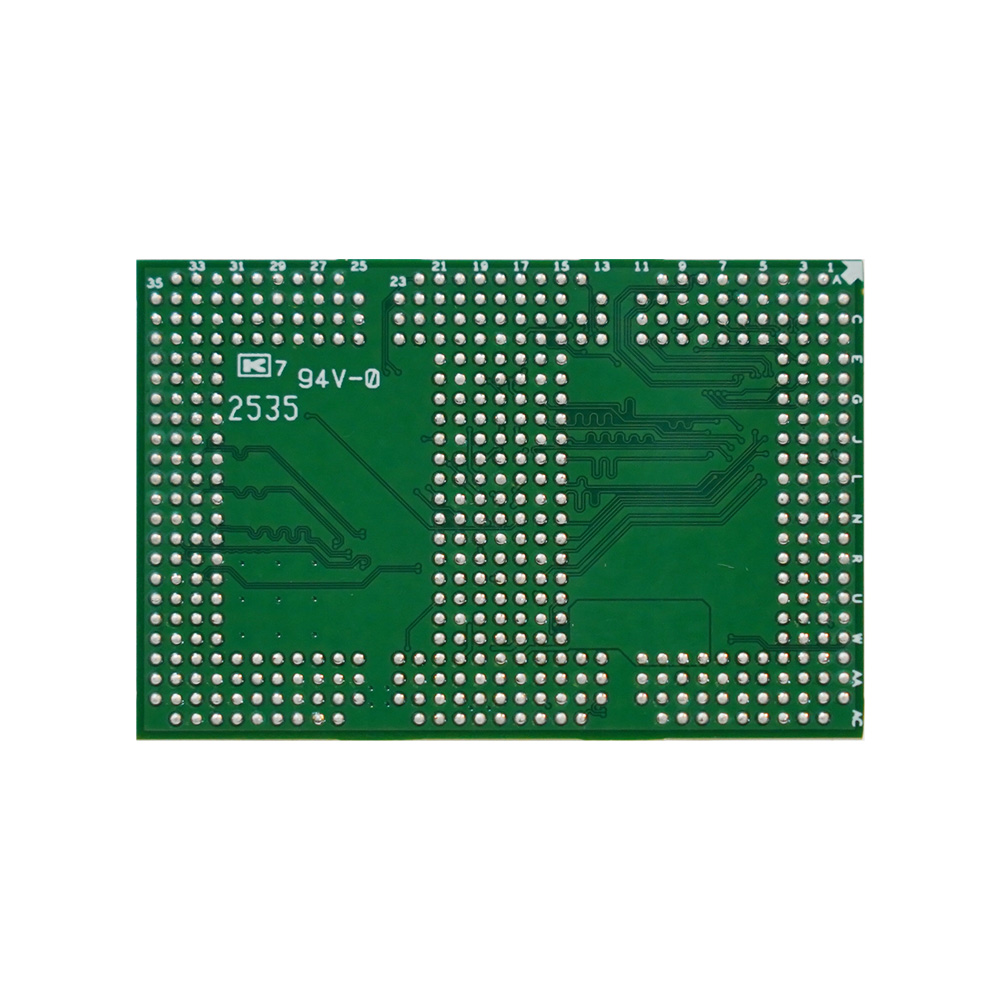

MOSM-MR30E-M - Image 2

Features

  • RZ/ V2N with 4x Cortex®-A55 (1.8GHz) and Cortex®-M33
  • AI Accelerator DRP-AI3 upto 15TOPS at Sparse
  • High power efficiency: 10TOPS/W
  • LPDDR4X Memory Interface
  • PCIe Interface (PCIe x1 Gen3)
  • OSM standard v1.2 Size-M with 476-pin
The OSM-M with Renesas RZ/V2N processor integrates 4x Cortex®-A55 (1.8GHz) cores and a Cortex®-AI Accelerator DRP-AI3 delivering up to 15 TOPS, featuring LPDDR4X memory interface, PCIe Gen3 x1 support, and compliant with OSM v1.2 Size-M 476-pin standard.

Supports Type-C ALT mode

General
OSM Standard v1.2 Support OSM Size-M SoC module
CPU 4x Arm Cortex-A55 @ 1.8GHz
1x Arm Cortex-M33 @ 200MHz
Storage eMMC 64GB
Memory 8G onboard LPDDR4X
Power Input 5V DC
Operating Systems Linux Yocto
I/O Interface
Audio 2x I2S
PCIe 1x PCIe Gen3
USB 1x USB OTG
1x USB 2.0
1x USB 3.0
Display 1x 4 lanes DSI
Video Integrated in SoC
Camera 2x 4 lanes CSI
Ethernet 2x GbE LAN (RGMII)
Other Legacy I/O 5x UART(1x console)
16x GPIO
1x SPI2x SDIO
2x CAN
1x PWM x4
2x ADC
1x JTAG
Mechanical
Form Factor SGeT OSM Specification v1.2
OSM size M
476 pins
Dimension 30mm(L) x 45mm (W)
Environmental
Operating Temperature  -20°C ~ 85°C
Relative Humidity 5 %~ 95 % RH (non-condensing)
