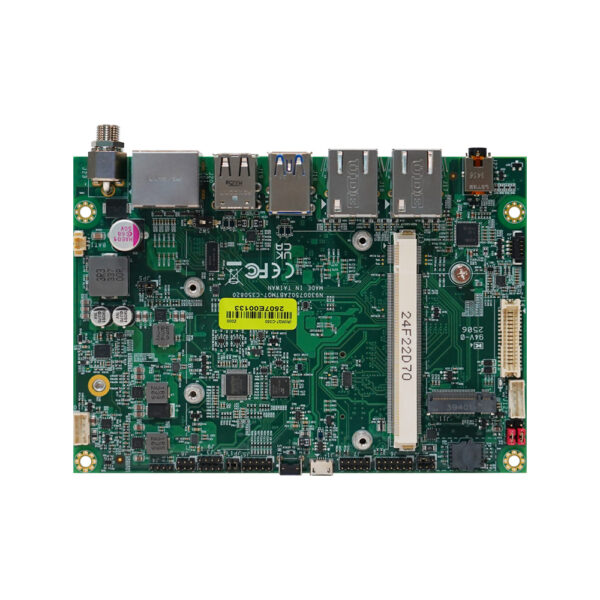

MQ7-C350

MQ7-C350

Qseven Evaluation Kit

Features

Dual-Platform support x86 & ARM
3.5″ compact size with Qseven standard carrier
Wide voltage input & versatile I/O
Modular design for flexible expansion
Industrial-Grade reliability for harsh environments

The MQ7-C350 Qseven Module redefines embedded computing with its unique Dual-Platform support for x86 & ARM architectures, housed in a compact 3.5” footprint utilizing a Qseven standard carrier. Engineered for versatility, it features a wide voltage input, versatile I/O, and a modular design enabling flexible expansion and customization, all while delivering Industrial-Grade reliability for dependable operation in harsh environme.

General
Form Factor	Support 3.5” compact with Qseven standard carrier (Implied by “MXM Connector Qseven”)
Dimension	145mm(L) x 100mm (W)
Power Input	Standard Input : DC 9-36V
I/O Interfaces
Display	1x DP (selectable) 1x HDMI (selectable) 1x LVDS (LVDS Connector)
USB	1x Micro USB (support OTG) 2x USB2.0 2x USB3.0 Type-A
Storage	1xM.2 Key-M 2280 1xM.2 Key-B 2242 1x Micro SD Card Slot (SDIO)
Ethernet	2x GbE RJ45 LANI
GPIO	1x GPIO group (8 bit per group)
I2C	2x I2C HDR
COM	1x RS 232/ 422/ 485 (Selectable)
Audio	1 x combo audio jack
Expansion	1x M.2 Key-M 2280 1x M.2 Key-B 2242
Environmental
Storage Temperature	-40°C ~ 85°C
Operating Temperature	0°C ~ 60°C
Relative Humidity	0 %~ 95 % (non-condensing)
