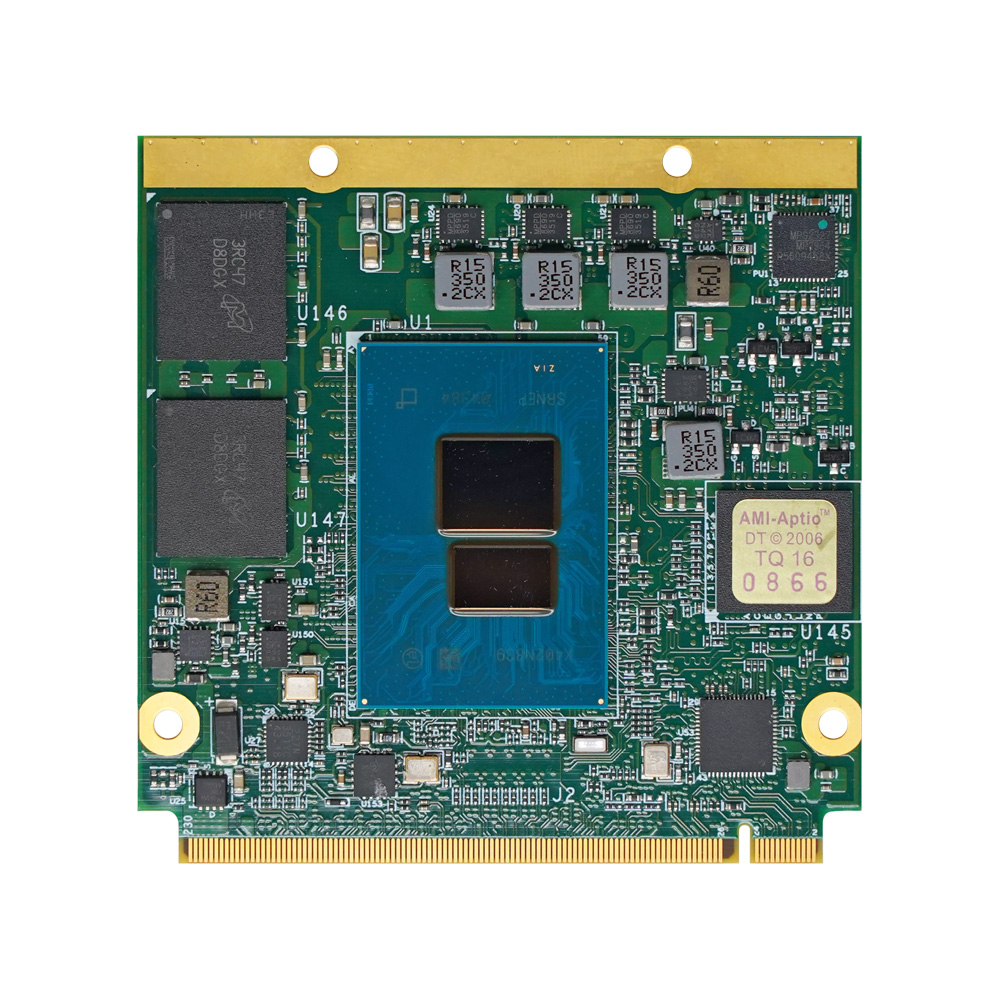

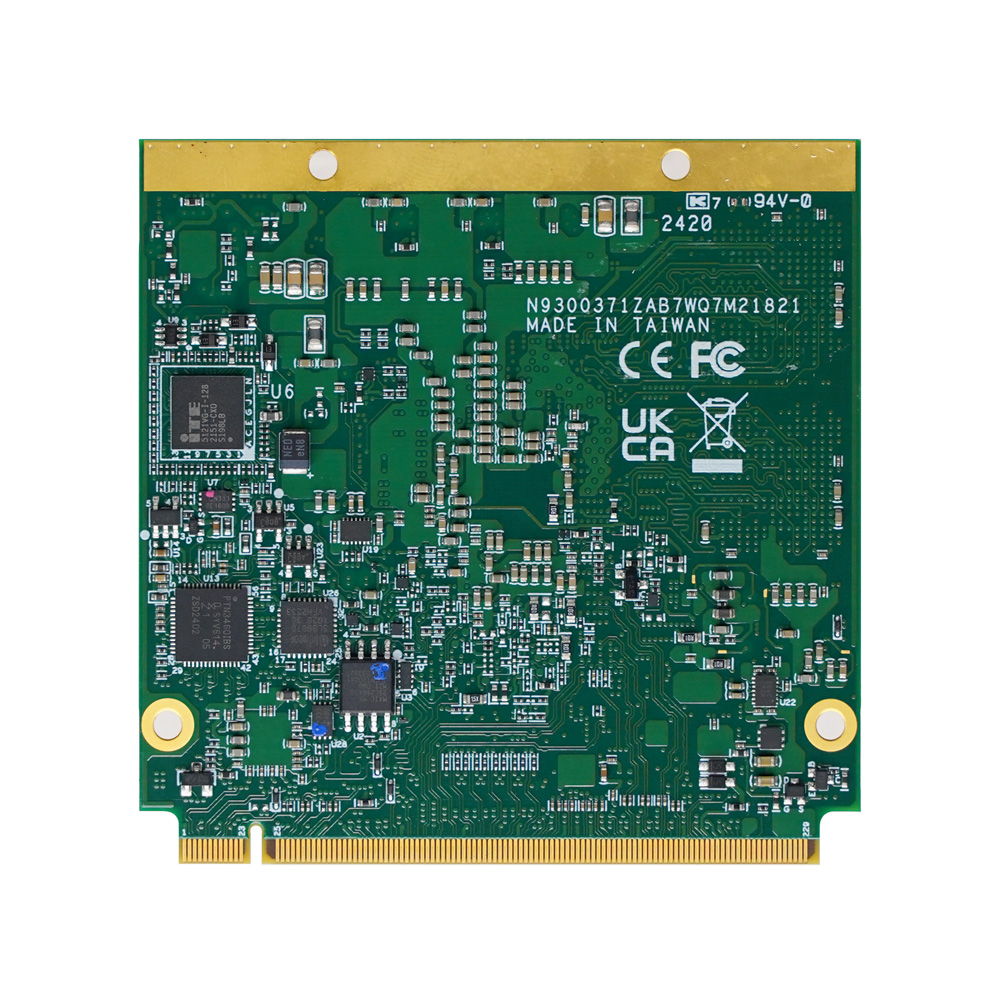

MQ7-M31

Qseven® Module with Intel® Atom Lake family processor

Features

  • Intel® Atom™ x7000RE ® processors family
  • Support 24-bit LVDS, HDMI/DP output
  • Support Four PCI Express Gen3 lanes
  • Support two USB 3.0, six USB 2.0
  • Options for eMMC 5.1 storage
Qseven® Module with Intel® Amston Lake family processor WQ7-M31 は、Intel が発売した新世代モバイル プロセッサである Intel® 最新の Atom x7000RE プロセッサ ファミリ (開発コード名 Amston Lake) をベースとしています。 Intel の超低電力テクノロジーと最新の Gracemont コアを使用しており、より高いパフォーマンスとより低いエネルギー消費を実現します。 Amston Lake プラットフォームは、パフォーマンスの向上、より高度なグラフィックス機能、画期的なメモリおよび I/O 機能、および幅広い動作温度を実現します。



General
CPUIntel® Atom® x7211RE, Dual cores, 1.0 GHz, 6W TDP
Intel® Atom® x7213RE, Dual cores, 2.0 GHz, 9W TDP
Intel® Atom® x7433RE, Quad cores, 1.5 GHz, 9W TDP
Intel® Atom® x7835RE, Octo cores, 1.3 GHz, 12W TDP
MemoryOnboard 2G/ 4G/8G LPDDR4 with 4800 MT/s
Single memory channel, 32bit x 2
In Band-ECC (Intel® Atom® CPU)
StorageSupport onboard eMMC 5.1 flash up to 256GB
Cache1.5 MB L2 cache
EthernetIntel® I226IT
DisplayPort Interface
DDIA24-bit Dual Channel LVDS up to 1920×1200@60Hz
DDIBDisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz
Or HDMI 2.0b up to 4K(4096×2160) @60Hz
AudioIntel® HD Audio integrated in SoC
I/O interfaces
PCIe4x PCIe Gen3
USB2x USB3.0, 6x USB2.0
SATA2x SATA 3.2
Video Interface
GPU Feature SupportIntel® Gen 12 UHD Graphics driven by Intel Xe architecture |
OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG
HDCP 1.4/2.2 for 4K premium content protection
Other Interfaces1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, WDT
1x CAN (option), 1x I²C, 1x HDA, 1x PWM, 1x SMBus,
14x GPIO, 1x UART, 1x WDT, 1x FAN Control
Embedded BIOS
Embedded BIOSAMI UEFI with Fast Boot support l Display Auto Detection l
Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form FactorQseven® 2.1 │70x70mm
Operating TemperatureIndustrial: -40°C to +85°C, w/ 0.5m/s airflow
Humidity0-95% RH, non-condensing
Power ManagementACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR)
Standard Input5V DC ±5%
Operating System
Standard SupportMicrosoft® Windows 10 IOT Core/ Enterprise (64-bit),
By project request: Yocto LTS kernel 2022
