RAYI-1-7425E

The Most Compact Solution For AI based Vision Catcher

RAYI-1-7425E
RAYI-1-7425E - 画像 (2)

Features

  • Intel Atom X7000RE Processor
  • 2.0 million pixels camera
  • Auto focus, 1080P/30fps
  • Built-in microphone
  • 0~3 meters voice pickup
  • FOV 96 degree
  • AI application Intel Openvino
  • Support Hailo-8 M.2 Module (optional)
The RAYI-7425E excels in AI Object Detection, Automation Optical Detection, and Optical Character Recognition, revolutionizing processes and enhancing productivity. Its fanless design ensures reliability even in harsh environments, while its compact size enables seamless integration into existing systems.the latest Intel Atom X7000E/ RE series at its core MIWA-721, the RAYI-7425E sets a new standard for edge computing devices. Its two-megapixel miniature photography lens and M.2 interface AI acceleration module empower it to tackle a myriad of tasks with precision and efficiency.

General
CPUSupport Intel® Atom® Alder Lake-N processors
MemoryLPDDR5 8GB/16GB
StorageeMMC 64G/128G
Power InputStandard: 12~24V
Operation SystemWindows® 10 IoT Enterprise
Linux Yocto

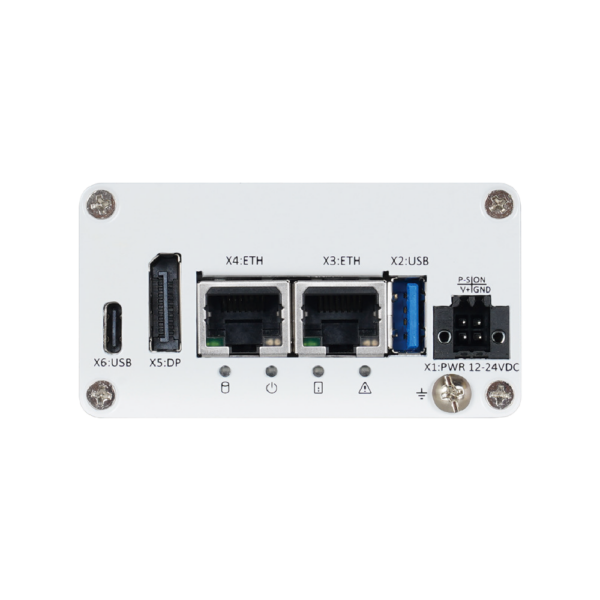

Basic I/O Interface
Power Connection4-Pin Terminal Block
Giga LAN2x 2.5 GbE LAN (Intel® i226-IT)
USB1x USB3.0 type-C
1x USB3.0 type A
Display1x DP
Expansion1x M.2 M Key 2242 PCIEx4
LED4 system LEDs
Optional Accessories
Power Adaptor4-pin Connector, 60W/24V ,40W/12V, and 45W/19V
Mounting KitDin Rail mount, Wall/Desk/VESA mount by project
Environmental
Operating Temperature20°C ~ 50°C with airflow
Storage Temperature(-)40°C ~ 85°C
Relative Humidity5%~ 95 % (non-condensing)
VibrationDIN Rail – 2G rms
ShockDin-Rail – 50G half sign
Mechanical
Dimension100mm (L) x 75mm (W) x 40 mm (H)
Net Weight0.75KG
Camera Spec
Imaging Sensor1/2.7 inch CMOS Sensor
Total Pixels2million
Focus ModeAuto Focus
Image Color24Bit
Field of View(Diagonal)96±5º
Resolution1920*1080@30fps
1280*720@30fps
Mic quantity2
Pickup Voice Distance0-3 meters
