MCM-M41

COM Express®Type10 Module with Intel® Twin Lake family processor

MCM-M41

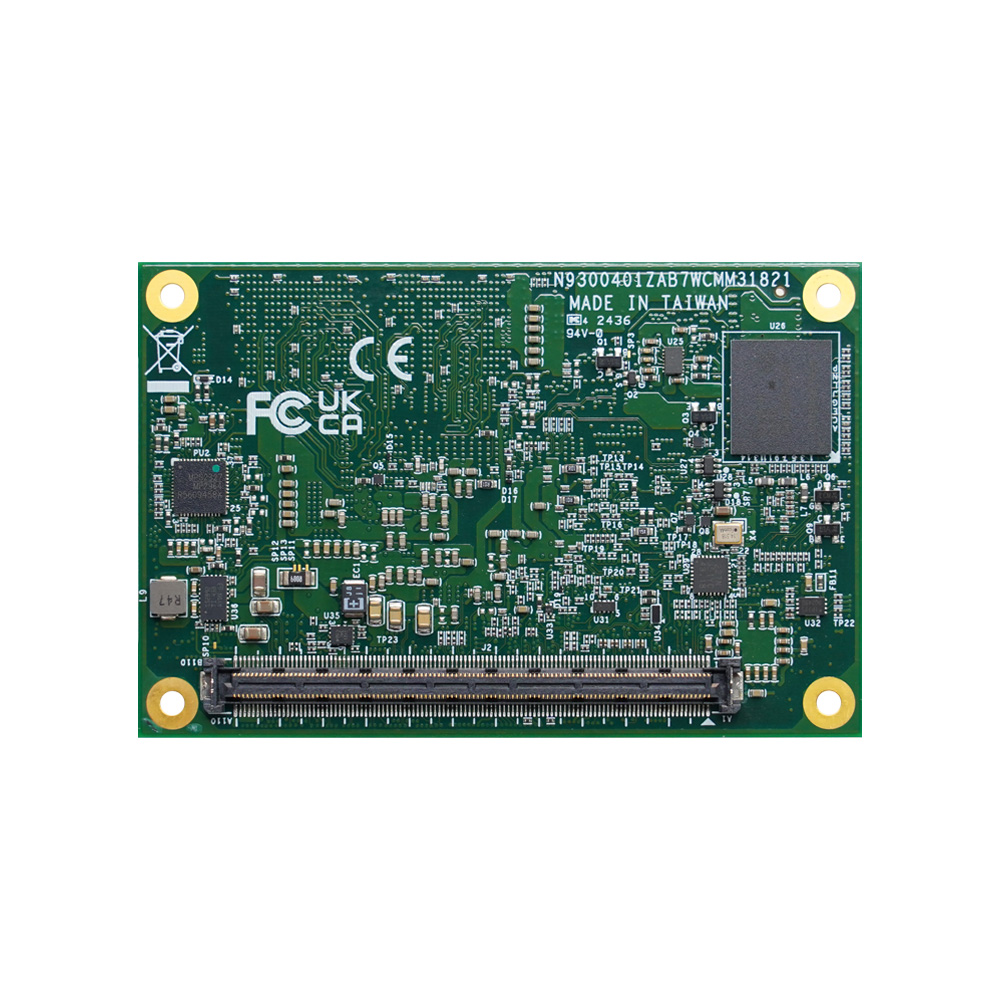

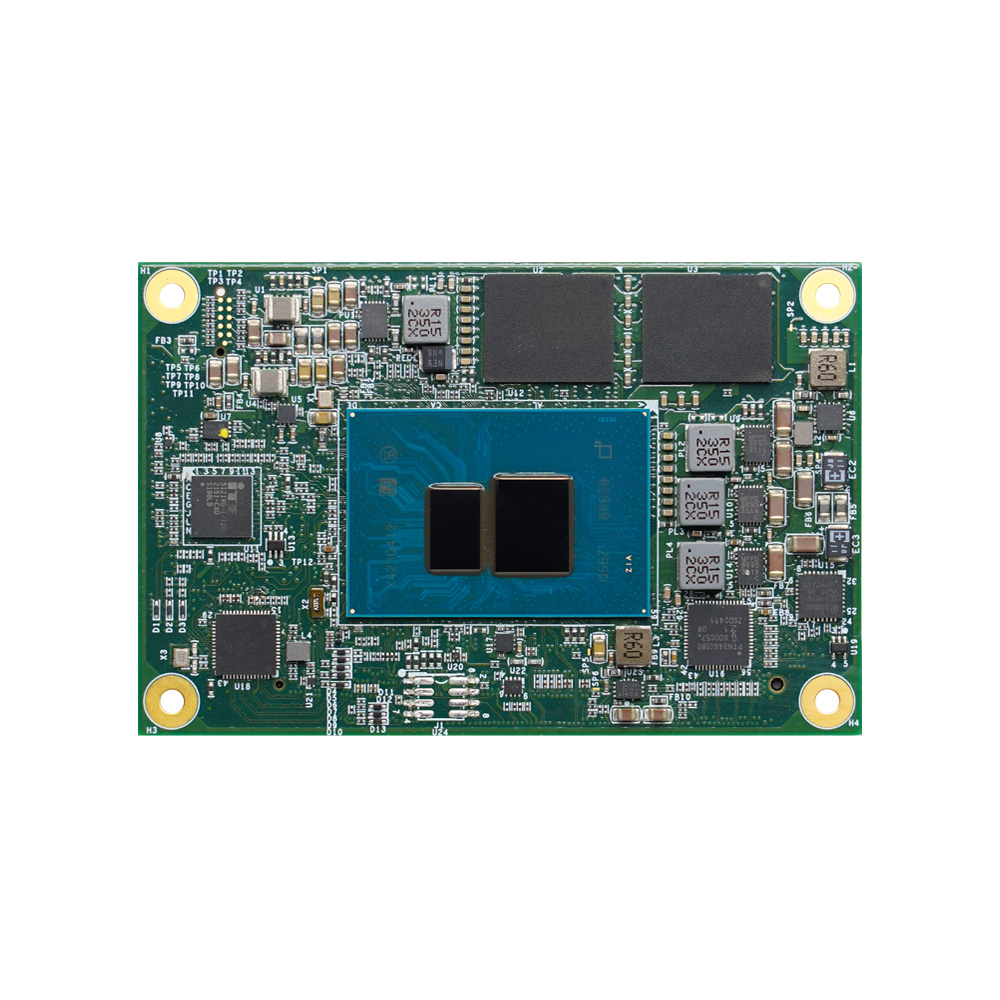

MCM-M41 - Image 2

Features

  • Intel® Atom N150 ® processors family
  • Support 24-bit LVDS, DP/DP++ output
  • Support four PCI Express Gen3 lanes
  • Support two USB 3.0, eight USB 2.0
  • Options for eMMC 5.1 storage
The MCM-M41 is a compact COM Express® Type 10 module leveraging the Intel Atom® N150 processor family (Intel® Twin Lake) architecture. The module offers versatile display outputs, including 24-bit LVDS and DP/DP++, alongside high data transfer rates supported by four PCI Express Gen3 lanes. For connectivity, it features two USB 3.0 and eight USB 2.0 ports. With the option for eMMC 5.1 storage, the MCM-M41 delivers a reliable and efficient solution for demanding embedded environments such as automation, healthcare, and transportation.

General
CPU Intel® Atom® N150, Quad cores, 6W TDP
Memory Onboard 4G/8G/16G LPDDR5 with 4800 MT/s
Single memory channel, 32bit x 2
In Band-ECC (Intel® Atom® CPU)
Storage Support onboard eMMC 5.1 flash up to 256GB
Ethernet 1x 2.5GbE with Intel® I226IT
DisplayPort Interface
DDIA 24-bit Dual Channel LVDS up to 1920×1200@60Hz
DDIB DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz
Or HDMI 2.0b up to 4K(4096×2160) @60Hz
Audio Intel® HD Audio integrated in SoC
I/O interfaces
PCIe 4x PCIe Gen3
USB 2x USB3.0, 6x USB2.0
SATA 2x SATA 3.2
Video Interface
GPU Feature Support Intel® Gen 12 UHD Graphics driven by Intel Xe architecture |
OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG
HDCP 1.4/2.2 for 4K premium content protection
Other Interfaces 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, WDT
1x CAN (option), 1x I²C, 1x HDA, 1x PWM, 1x SMBus,
14x GPIO, 1x UART, 1x WDT, 1x FAN Control
Embedded BIOS
Embedded BIOS AMI UEFI with Fast Boot support l Display Auto Detection l
Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form Factor Qseven® 2.1 │70x70mm
Operating Temperature Industrial: -40°C to +85°C, w/ 0.5m/s airflow
Humidity 0-95% RH, non-condensing
Power Management ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR)
Standard Input 5V DC ±5%
Operating System
Standard Support Microsoft® Windows 10 IOT Core/ Enterprise (64-bit),
By project request: Yocto LTS kernel 2022
