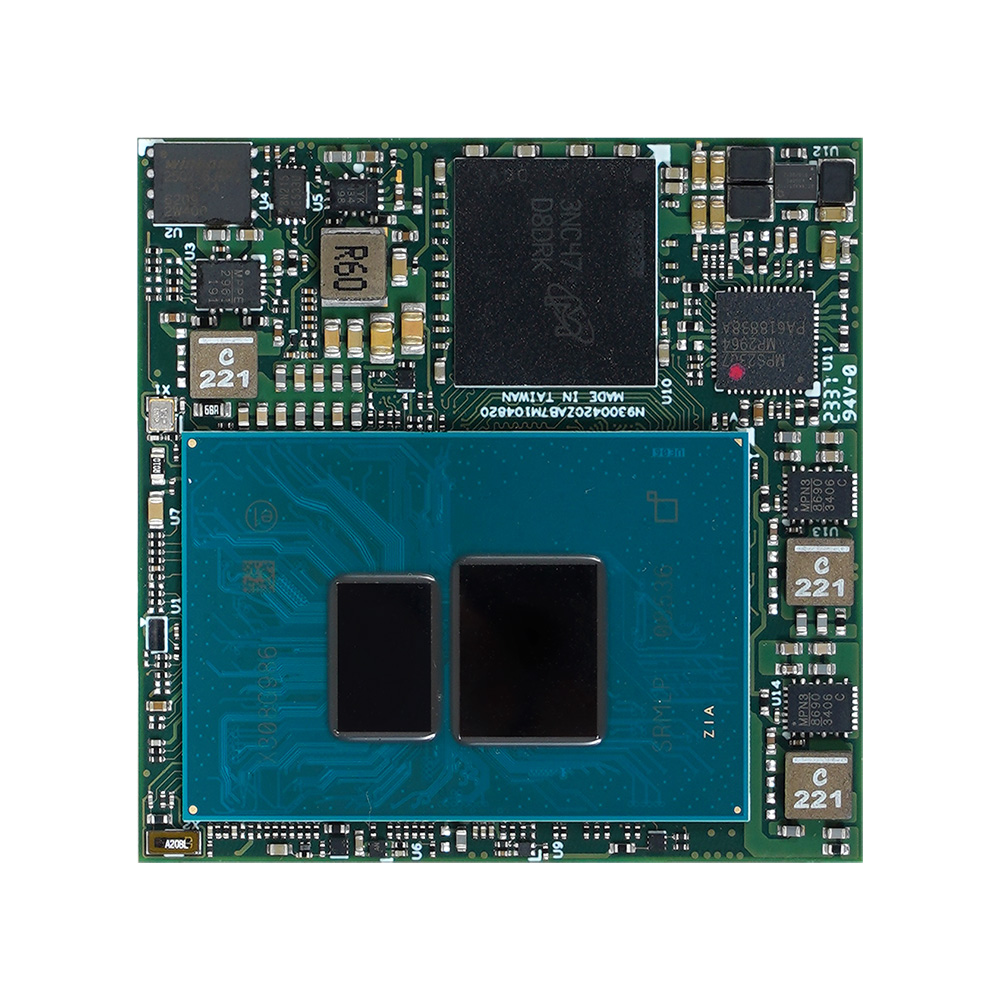

MOSM-M105

MOSM-M105

OSM-L with intel Amston Lake series processor

Features

Intel® Amston Lake family processor
On board LPDDR5 memory up to 8G/
x86 software and hardware eco-system supported
Legacy I/O and high-speed interface implemented
OSM size-L form factor module (45 x 45 mm)

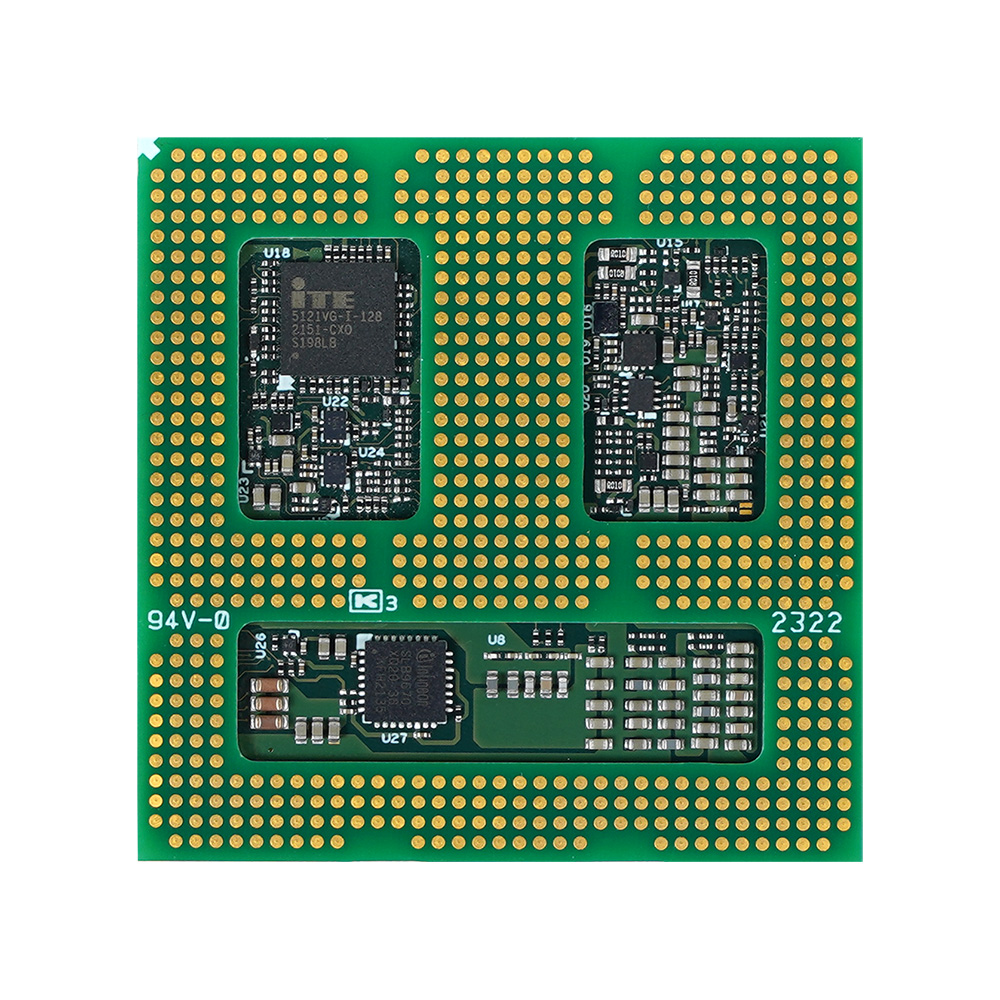

LGA grid array with 662 contacts

The Open Standard Module™ specification allows developing, producing and distributing embedded modules for the most popular ARM and x86 architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.

General
CPU	Intel Atom® x7000RE Series Processor (default: x7211RE, 3.2GHz)
OSM Standard v1.1	Support OSM Size-L SoC module
Memory	1x 8GB onboard LPDDR5 memory, 4800MT/s
Storage	N/A (designed on carrier board)
Power input	5V DC
Operating System	Win 10, Win 10 IoT Win 11, Win 11 IoT
Basic I/O Interface
Audio	1 x HDA
PCI Express	2 x PCIe x1 , 1 x PCIe x2, x2 PCIEx1(swap SATA)
USB	4x USB2.0 2x USB3.2
Display	1x DP++/HDMI 1x eDPx2
Video	N/A
Camera	N/A
Ethernet	1x GbE LAN (SGMII)
Other Lagacy I/O	17x GPIO, 2x I2C, 4x UART 2x SPI, 1x eMMC, 2x ADC, 4x PWM, 1x eSPI
Mechanical
Form Factor	SGeT OSM Specification v1.1 OSM size L 662 pins
Dimension	45 (L) x 45 (W) mm
Mechanical and Environmental
Operating Temperature	-20°C ~ 85°C
Humidity	5-95% RH, non-condensing
