MOSM-M106

OSM-L with Intel® Twin Lake family processor

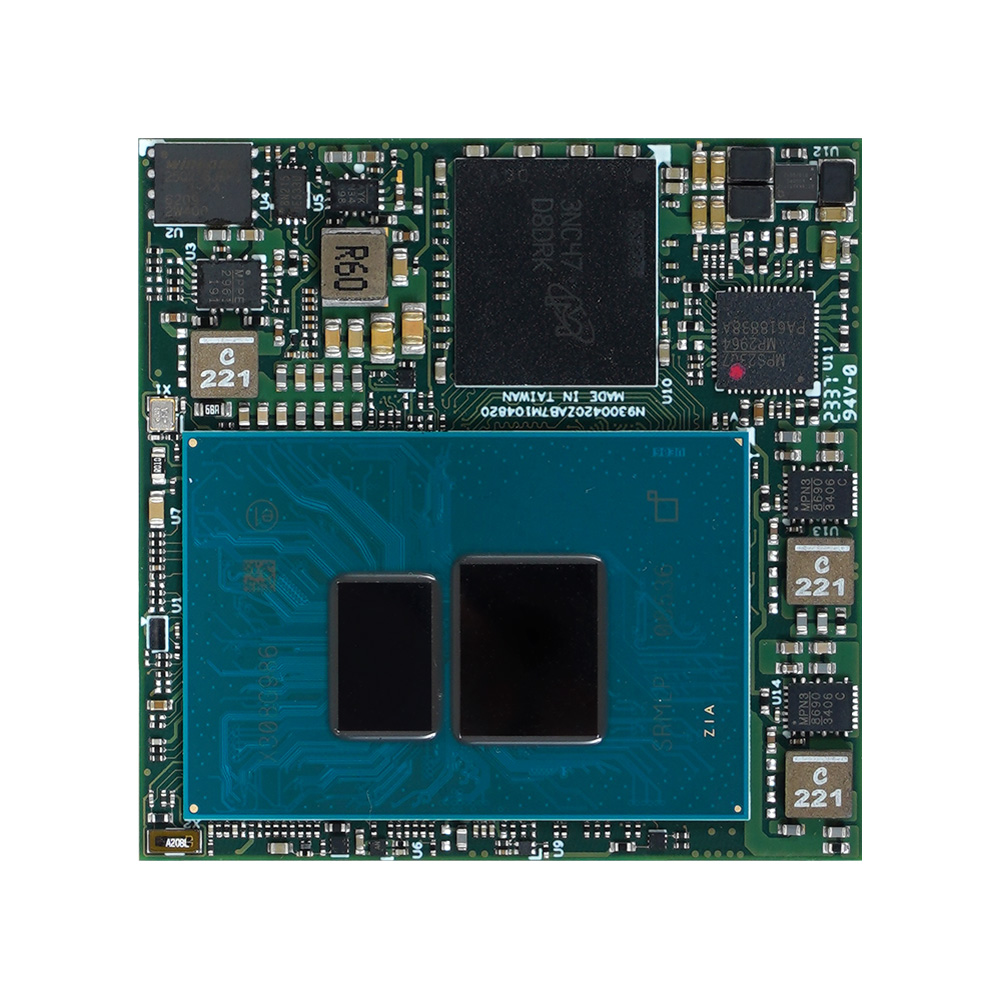

MOSM-M106

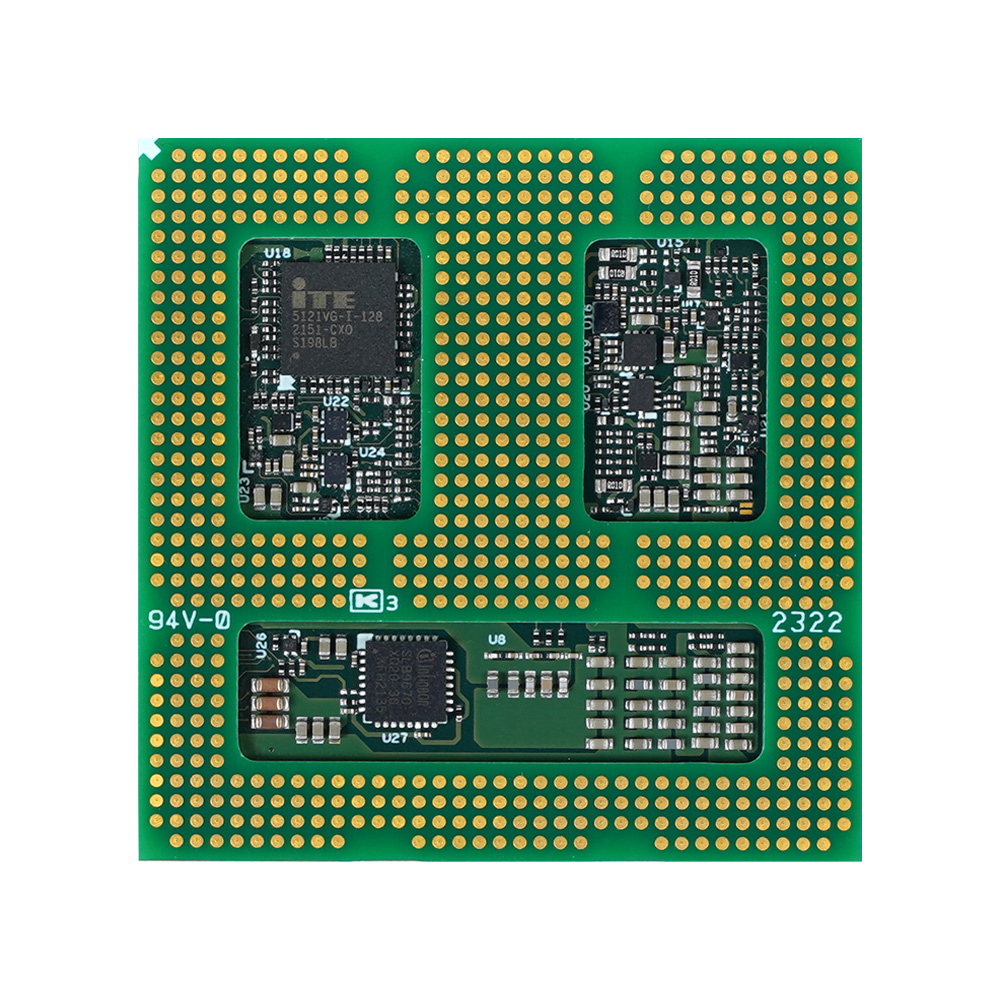

MOSM-M106 - Image 2

Features

  • Intel® Atom N150 ® processors family
  • Onboard LPDDR5 memory up to 8GB
  • x86 software and hardware ecosystem is supported
  • Legacy I/O and high-speed interfaces implemented
  • OSM Size-L form factor module (45 x 45 mm)
  • LGA grid array with 662 pins
The MOSM-M106 is an OSM-L (45x45mm) form factor module, featuring the Intel Atom® N150 processor family (Intel® Twin Lake) for high-performance x86 computing. It integrates up to 8GB of LPDDR5 onboard memory and utilizes a 662-pin LGA grid array to implement both legacy I/O and high-speed interfaces. The module is designed for compact industrial applications that require robust x86 processing power and a rich set of I/O connectivity options.

General
OSM Standard v1.1 Support OSM Size-L SoC module
CPU Intel® Atom® N150, Quad cores, 6W TDP
Memory 1x 8GB onboard LPDDR5 memory, 4800 MT/s
Storage N/A (designed on carrier board)
Power input 5V DC
Operating System Win 10, Win 10 IoT
Win 11, Win 11 IoT
 I/O Interface
Audio 1 x HDA
PCIe 2 × PCIe x1, 1 × PCIe x2 (1 × PCIe x1 shared with SATA)
USB 4x USB2.0
2x USB3.2
Display 1x DP++/HDMI
1x eDPx2
Video N/A
Camera N/A
Ethernet 1x GbE LAN (SGMII)
Other Lagacy I/O 17x GPIO, 2x I²C, 4x UART,
2x SPI, 1x eMMC, 2x ADC,
4x PWM, 1x eSPI
Mechanical
Form Factor SGeT OSM Specification v1.1
OSM size L
662 pins
Dimension 45mm (L) x 45 mm(W)
Environment
Operating Temperature -20°C ~ 85°C
Humidity 5% to 95% RH (non-condensing)
