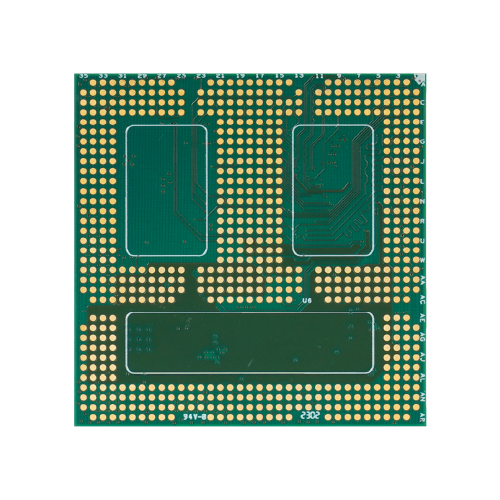

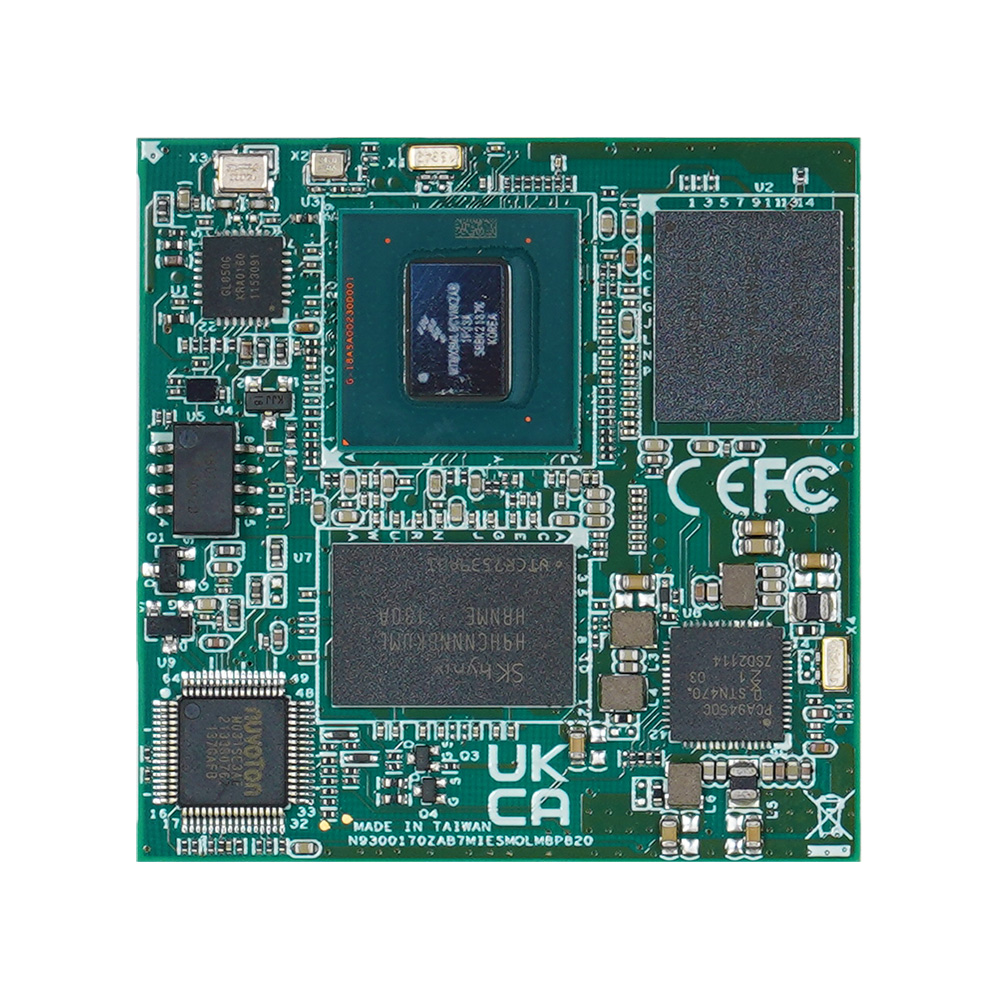

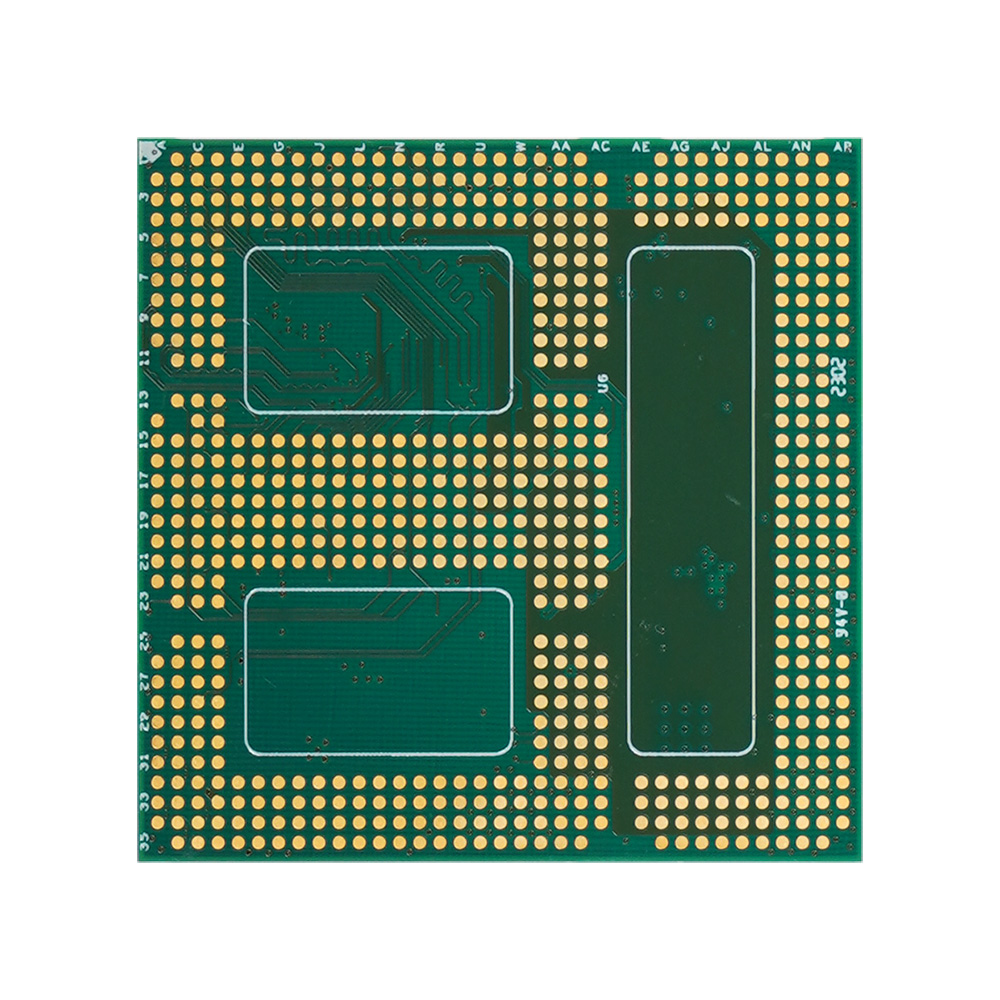

NXP i.MX 8M Plus family processor OSM module
The Open Standard Module™ specification allows developing, producing and distributing embedded modules for the most popular ARM and x86 architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.
| General | |
| OSM Standard v1.1 | Support OSM Size-L SoC module |
| CPU | NXP i.MX 8M Plus with Quad core Cortex-A53 |
| Storage | 16GB onboard eMMC 5.1 flash 32GB/64GB by project |
| Memory | 2GB onboard LPDDR4, 3733 MT/s 4GB/8GB project-dependent |
| Power Input | 5V DC |
| Operating Systems | Embedded Linux (Yocto-based) |
| I/O Interface | |
| Audio | 1x I2S |
| PCIe | 1x PCIe x1 (Gen3) |
| USB | 4x USB2.0/ (1 port with dual role) 1x USB3.0 |
| Display | 1x 24bit LVDS single channel 1x HDMI, 1x MIPI DSI |
| Video | Integrated in CPU |
| Camera | 1x CSI |
| Ethernet | 2x GbE LAN (RGMII) |
| Other Legacy I/O | 8x GPIO, 1x I²C, 4x UART(2xRTS/CTS), 2x SPI, 2xCAN Bus, 2x SDIO (4bit), 2x ADC, 4x PWM, 1x JTAG |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.1 OSM Size-L 662 pins |
| Dimension | 45mm(L) x 45mm (W) |
| Environmental | |
| Operating Temperature | -20°C to 85°C |
| Relative Humidity | 5 % to 95 % RH (non-condensing) |
