MOSM-MM30U

OSM-L with MediaTek Genio 720/ 520 processor

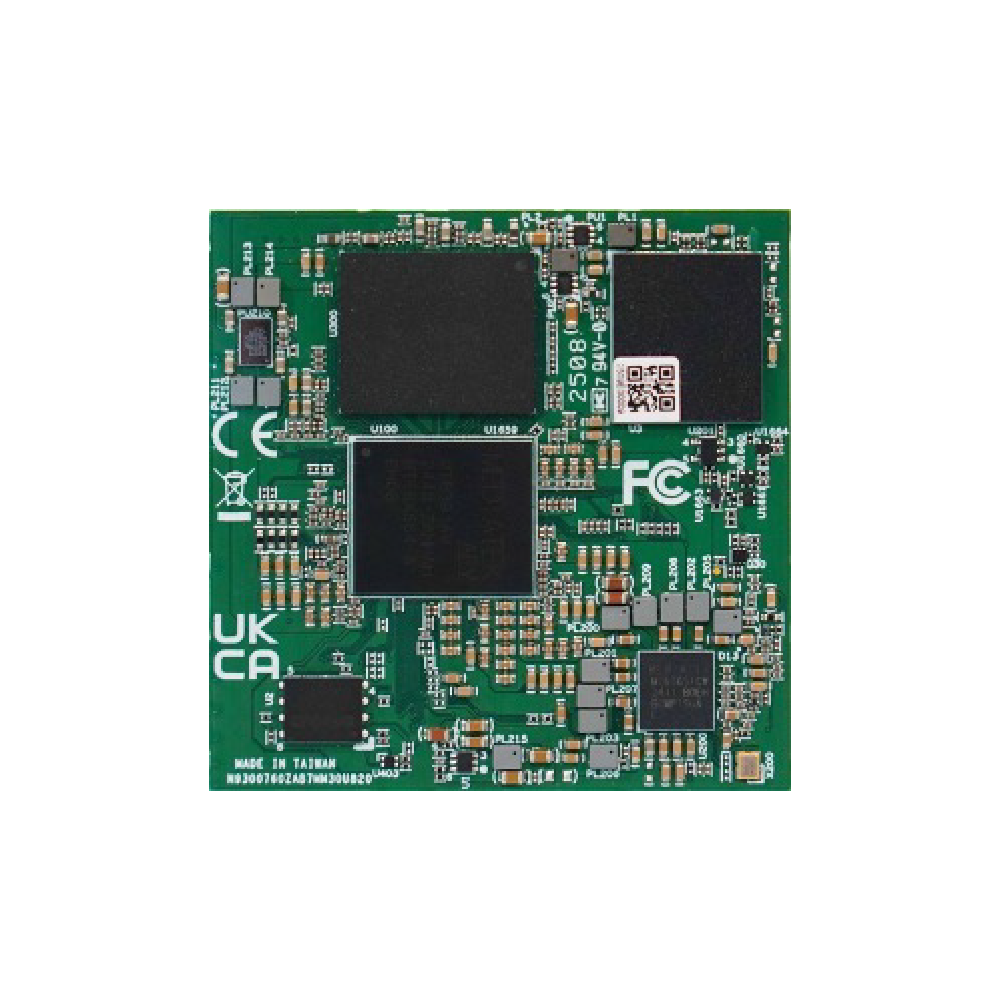

MOSM-MM30U

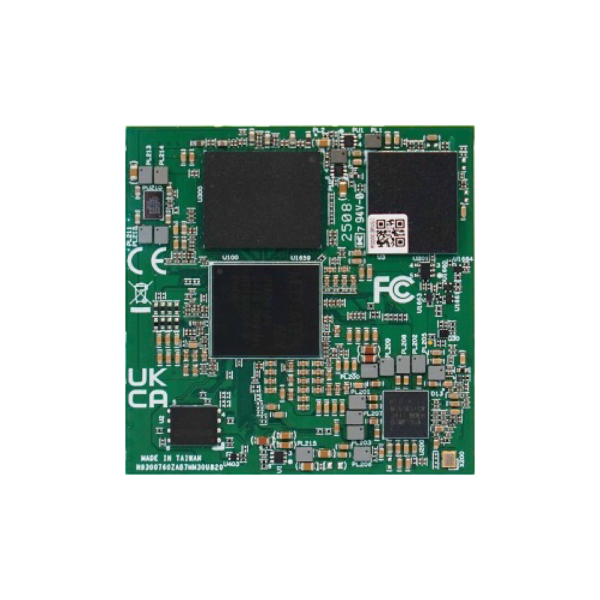

MOSM-MM30U - Image 2

Features

  • MediaTek Genio 720/ 520 A78+ A55 SoC
  • NPU with up to 10 TOPS
  • Onboard LPDDR5 memory and UFS storage
  • Multiple display outputs (eDP, DSI, LVDS)
  • Supports USB 3.0/2.0, PCIe Gen2, Gigabit Ethernet
  • OSM standard v1.2 Size-L with 662-pin LGA layout
The MOSM-MM30U module features the MediaTek Genio 720 processor with a high-efficiency 2+6 core architecture, delivering up to 2.6GHz processing speed for edge intelligence. Its integrated NPU supports up to 10 TOPS for accelerating AI tasks such as facial recognition and object detection. With onboard LPDDR5 memory and high-speed UFS 3.1 storage, it ensures reliable performance for data-intensive applications. The module supports multiple display outputs including eDP, DSI, and LVDS, and provides comprehensive connectivity with USB 3.0/2.0, PCIe Gen2, and GbE LAN. Compliant with OSM-L v1.2 standard and a 662-pin LGA layout, the compact 45x45mm design fits a wide range of industrial AIoT deployments.

General
OSM Standard v1.2 Support OSM Size-L SoC module
CPU MediaTek Genio 720 2x A78 2.6 GHz + 6x A55 2.0 GHz
MediaTek Genio 520 2x A78 2.2 GHz + 4x A55 2.0 GHz
Storage 1x 128GB 3.1 UFS
256GB by project
Memory 1x 8G onboard LPDDR5
16GB by project
Power Input 5V DC
Operating Systems Android 15
Embedded Linux (Yocto distribution)
I/O Interface
Audio 2x I2S
PCIe 1x PCIe Gen2
USB 3x USB2.0/ (1 port with dual role)
2x USB3.0
Display 2x eDP (1x supports Type-C ALT mode)
1x LVDS / DSI (optional)
Video Integrated in SoC
Camera 2x 4 lanes CSI
Ethernet 1x GbE LAN (RGMII)
Other Legacy I/O 4x UART(1x console)
3x GPIO(1 for DMIC/touch)
2x SPI, 2x I2C
2x SDIO (4-bit), 2x ADC
3x PWM, 1x JTAG
Mechanical
Form Factor SGeT OSM Specification v1.2
OSM size L

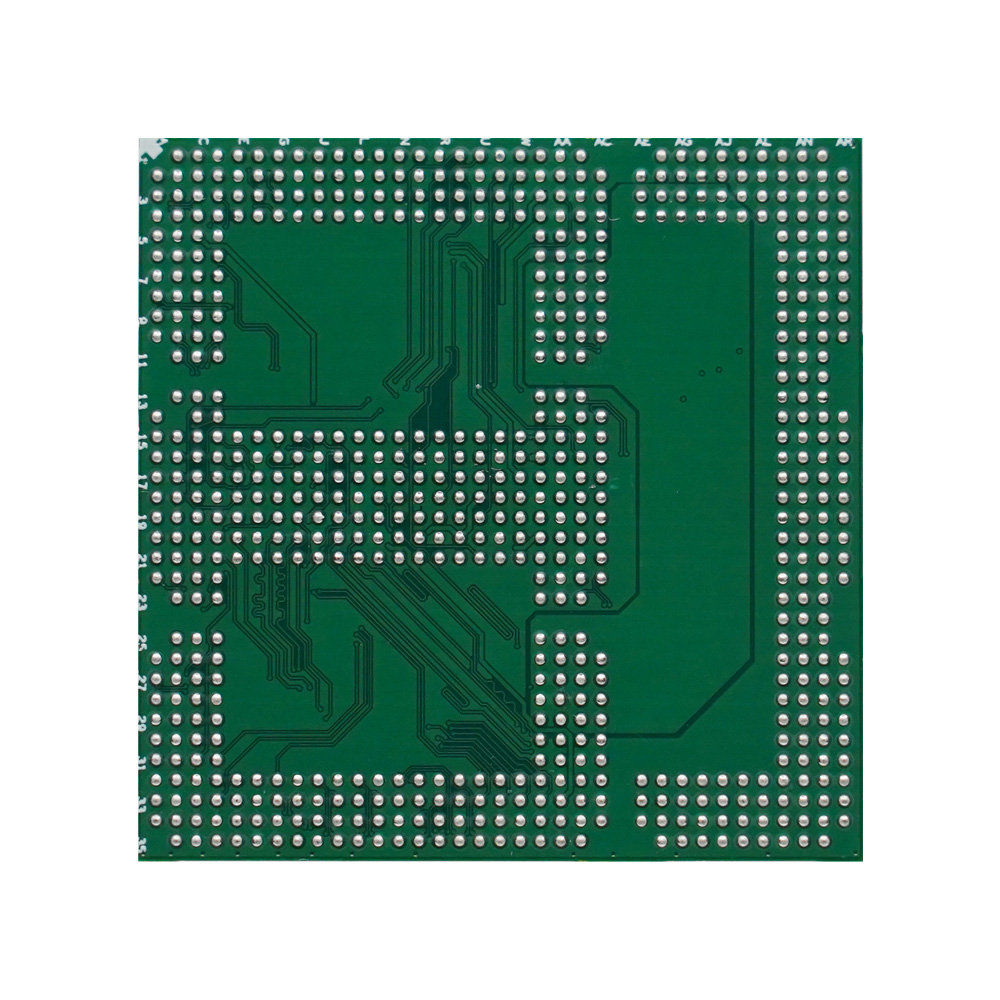

662 pins
Dimension 45mm(L) x 45mm (W)
Environmental
Operating Temperature  -20°C ~ 85°C
Relative Humidity 5 %~ 95 % RH (non-condensing)
