NXP i.MX 93 family processor OSM-S module
NXP i.MX 93, Dual-Core Arm® Cortex®A55+M33 processor
NPU with up to 0.5 TOPS
Onboard 2GB LPDDR4 memory and 16GB storage
Legacy I/O and high-speed interfaces

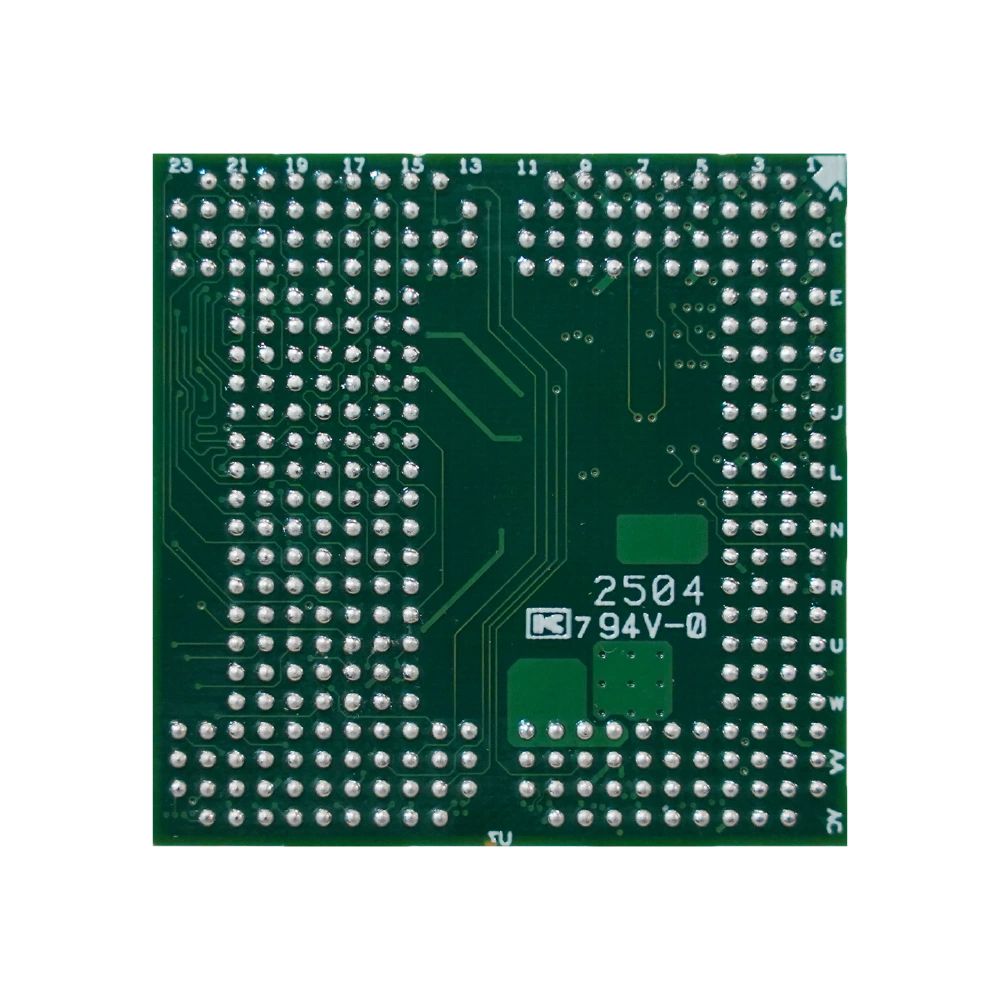

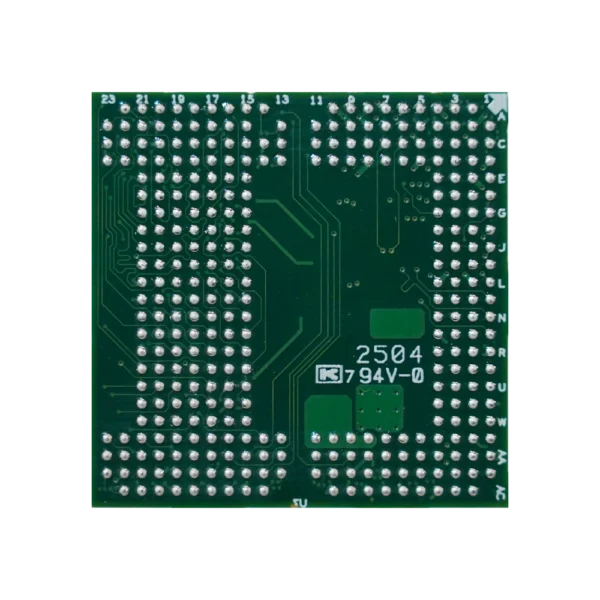

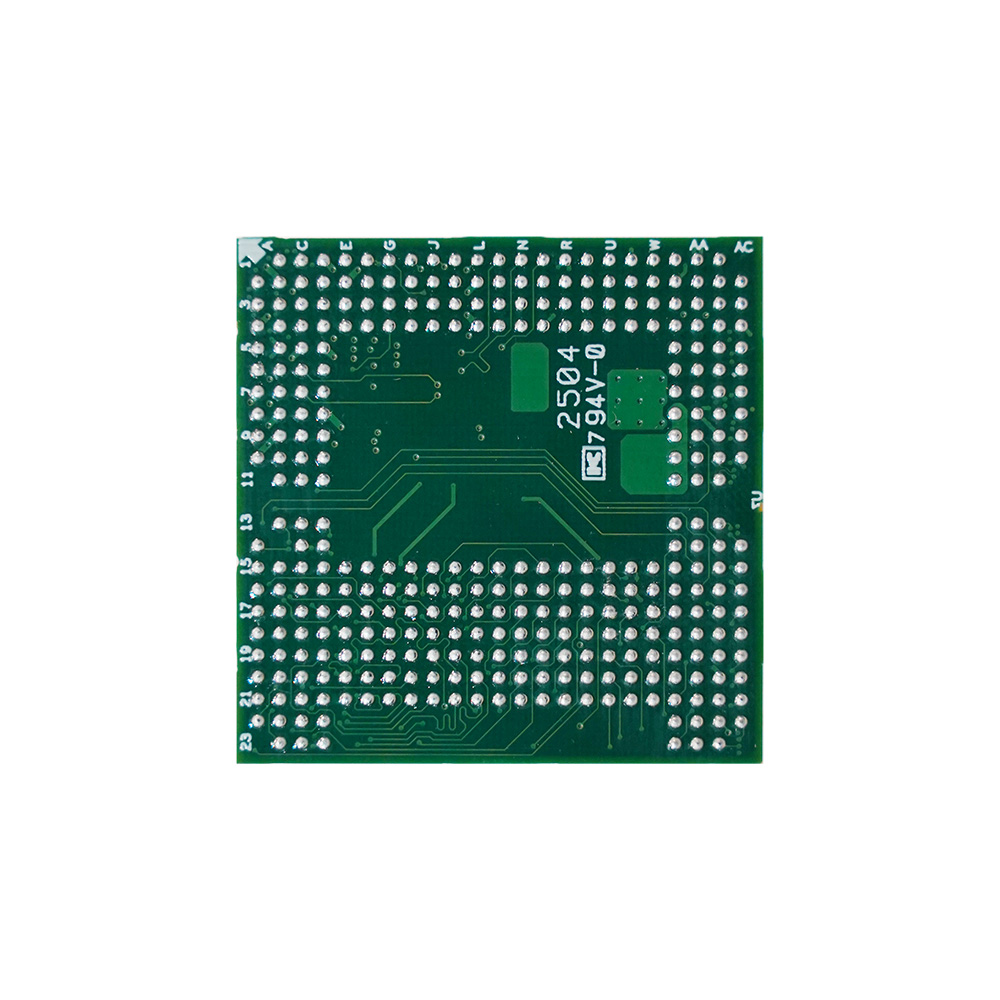

OSM Standard v1.2, Size-S (30x 30 mm), 332 pins

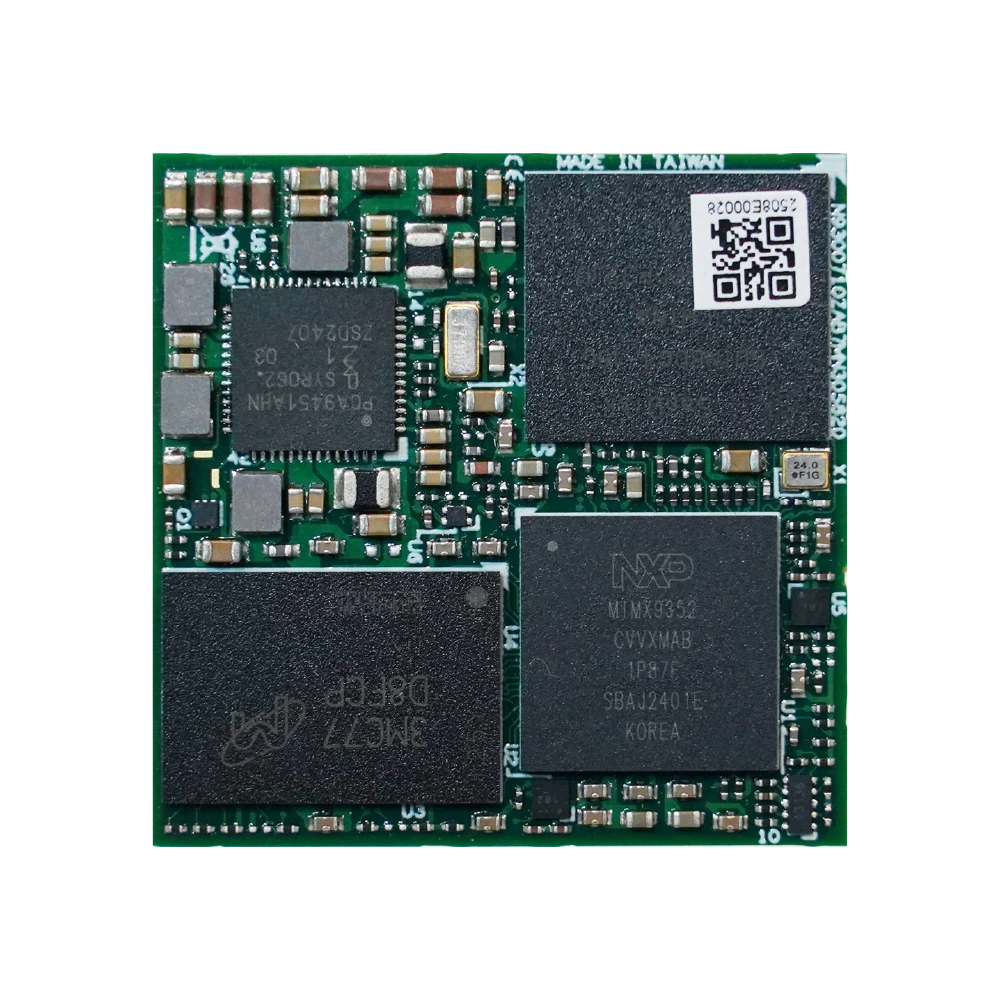

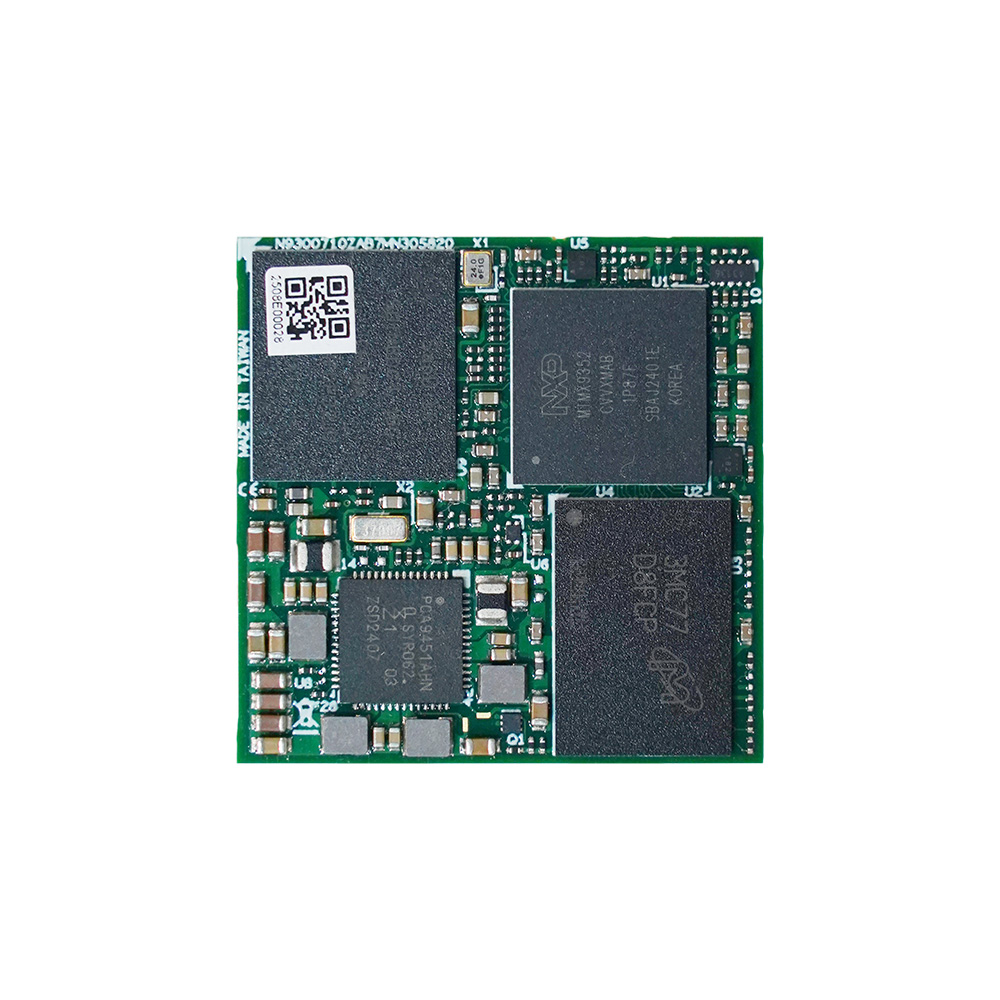

The MN30E-S module, with its 30×30 mm size, integrates the NXP i.MX 93 dual-core processor, providing efficient computing, offering an optimized solution for space-constrained embedded applications. Its built-in 0.5 TOPS NPU supports AI applications such as edge computing and IoT, enabling intelligent functionalities. Equipped with 2GB LPDDR4 memory, 16GB storage, and rich I/O interfaces, it is ideal for space-constrained embedded systems.
| General | |
| OSM Standard v1.2 | OSM Size-S SoC module |
| CPU | NXP i.MX93, Dual-Core Arm® Cortex®A55+M33 |
| Storage | 16GB onboard eMMC 5.1 flash |
| Memory | 2GB onboard LPDDR4, 3733 MT/s |
| Power Input | 5V DC |
| Operating Systems | Embedded Linux (Yocto-based) |
| I/O Interface | |
| Audio | 1x I2S |
| PCIe | X |
| USB | 2x USB2.0/ (1 port with OTG) |
| Display | 1x MIPI DSI |
| Video | X |
| Camera | 1x MIPI-CSI (2 lanes) |
| Ethernet | 2x GbE LAN (RGMII) (1 port with TSN) |
| Other Legacy I/O | 8x GPIO, 2x I2C, 3x UART(2xRTS/CTS) 2x SPI, 2xCAN Bus, 2x SDIO 2x ADC, 2x PWM, 1x JTAG |
| Mechanical | |
| Form Factor | SGeT OSM Standard v1.2 OSM Size-S 332 pins |
| Dimension | 30 mm (L) x 30 mm (W) |
| Environmental | |
| Operating Temperature | -20°C to 85°C |
| Relative Humidity | 5 % to 95 % RH , non-condensing |
