MOSM-MR40E

OSM-L with Renesas RZ/V2H processor

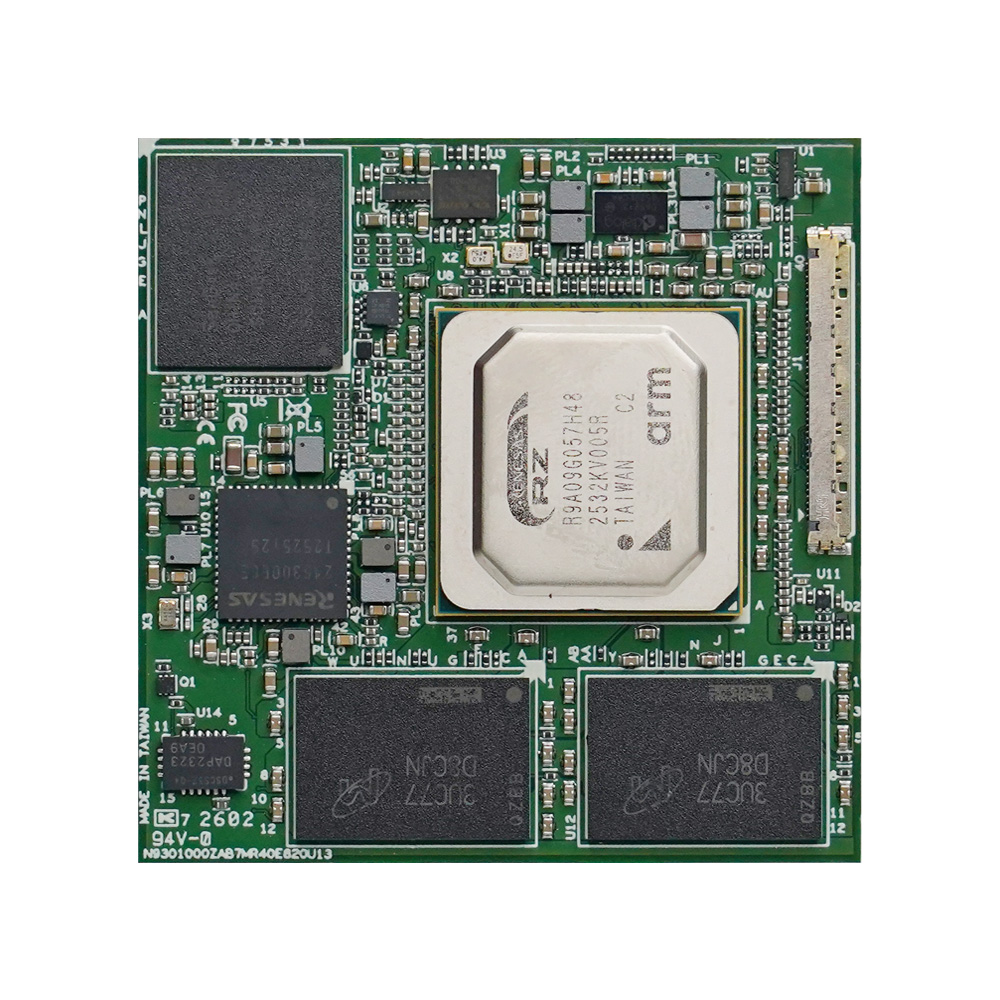

MOSM-MR40E

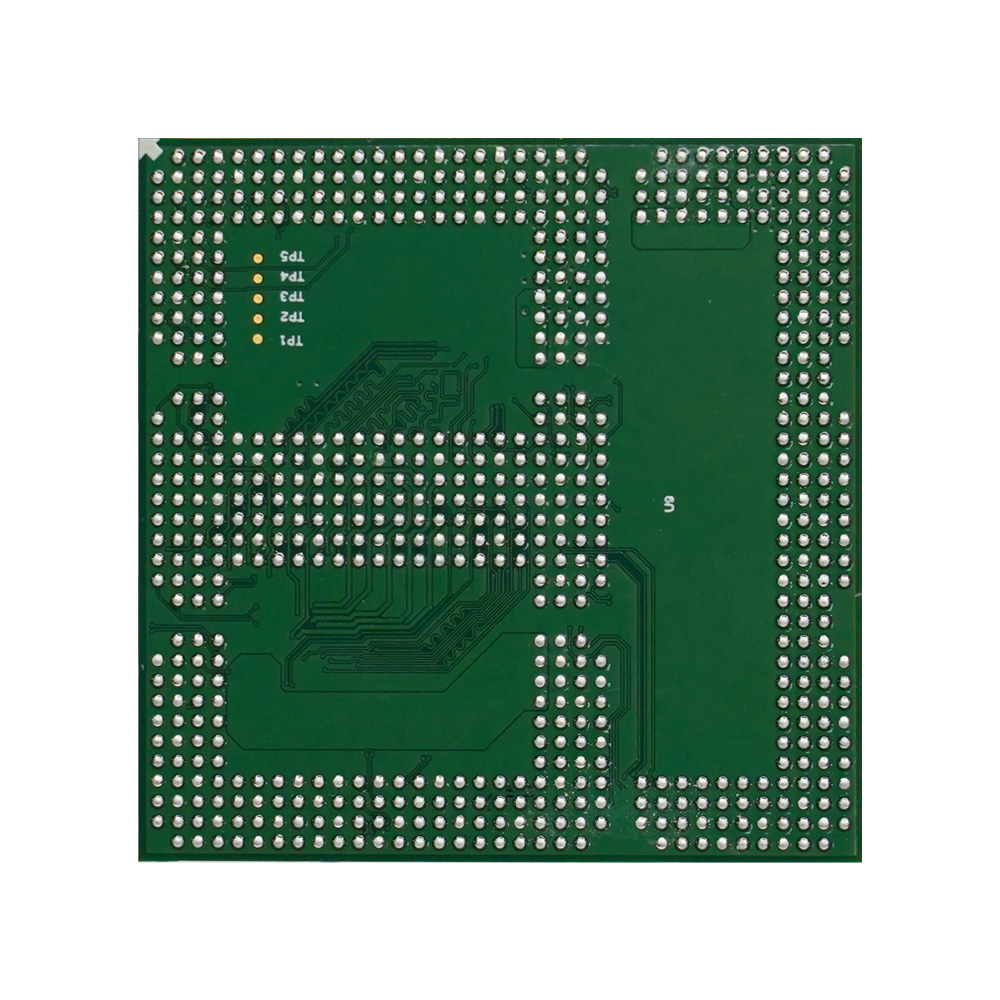

MOSM-MR40E - Image 2

Features

  • RZ/V2H with 4x Cortex®-A55 (1.8GHz) ,2x Cortex®-R8, and Cortex®M33
  • AI Accelerator DRP-AI3 upto 80TOPS at Sparse
  • High power efficiency: 10TOPS/W
  • LPDDR4X Memory Interface
  • PCIe Interface (2x PCIe x1 Gen3)
  • OSM Standard v1.2 Size-L with 662-pins

The MOSM-MR40E with Renesas RZ/V2H processor integrates 4x Cortex®-A55 (1.8GHz), 2x Cortex®-R8, and 1x Cortex®-M33 cores , delivering up to 80 TOPS (Sparse) via DRP-AI3 accelerator. It features LPDDR4X interface, 2x PCIe Gen3 x1 support , and supports 4x MIPI CSI-2 (4-lane) camera interfaces , all within a 662-pin OSM v1.2 Size-L footprint for comprehensive I/O access.

General
OSM Standard v1.2Support OSM Size-L SoC module
CPU4x Arm Cortex-A55 @ 1.8GHz

2x Arm Cortex-R8 @ 800MHz

1x Arm Cortex-M33 @ 200MHz

StorageeMMC 64GB
Memory2x 8GB onboard LPDDR4X
Power Input5V DC
Operating SystemsLinux (Yocto-based)
I/O Interface
Audio2x I2S
PCIe2x PCIex1Gen3
USB2x USB 2.0 (1 port with OTG)2x USB 3.0
Display1×MIPI-DSI(4-lane)
VideoIntegrated in SoC
Camera4 ×MIPI CSI-2 (4-lane)：2x on-board / 2x OSM
Ethernet2x GbE LAN (RGMII)
Other Legacy I/O4x UART(1x console), 22x GPIO, 2x SDIO,

2x CAN, 1x PWM x3,

1x SPI, 2x ADC, 1x JTAG

Mechanical
Form FactorSGeTOSM Specification v1.2

OSM Size-L

662 pins

Dimension45mm(L) x 45mm (W)
Environmental
Operating Temperature-20°C to 85°C
Relative Humidity5 % to 95 % RH (non-condensing)
