MOSM-R120

OSM-L to PICO-iTX Evaluation Kit

MOSM-R120

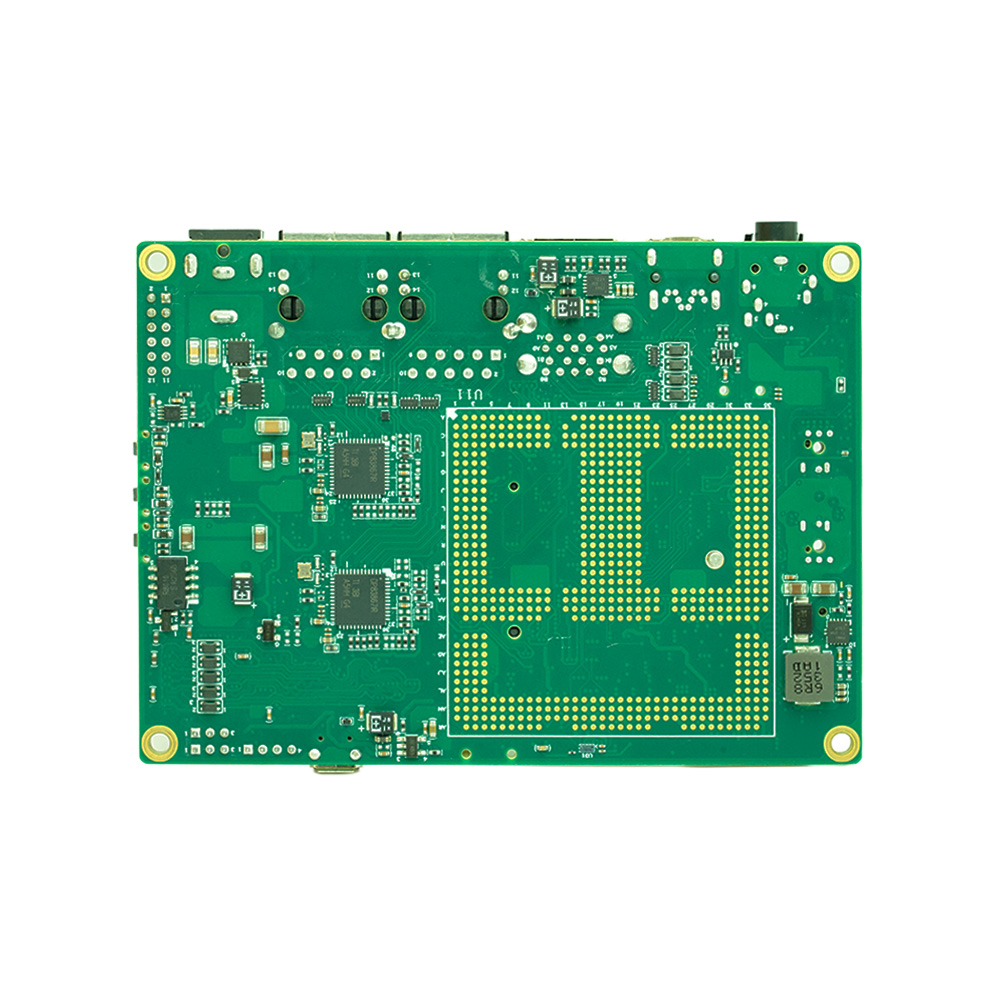

MOSM-R120 - Image 2

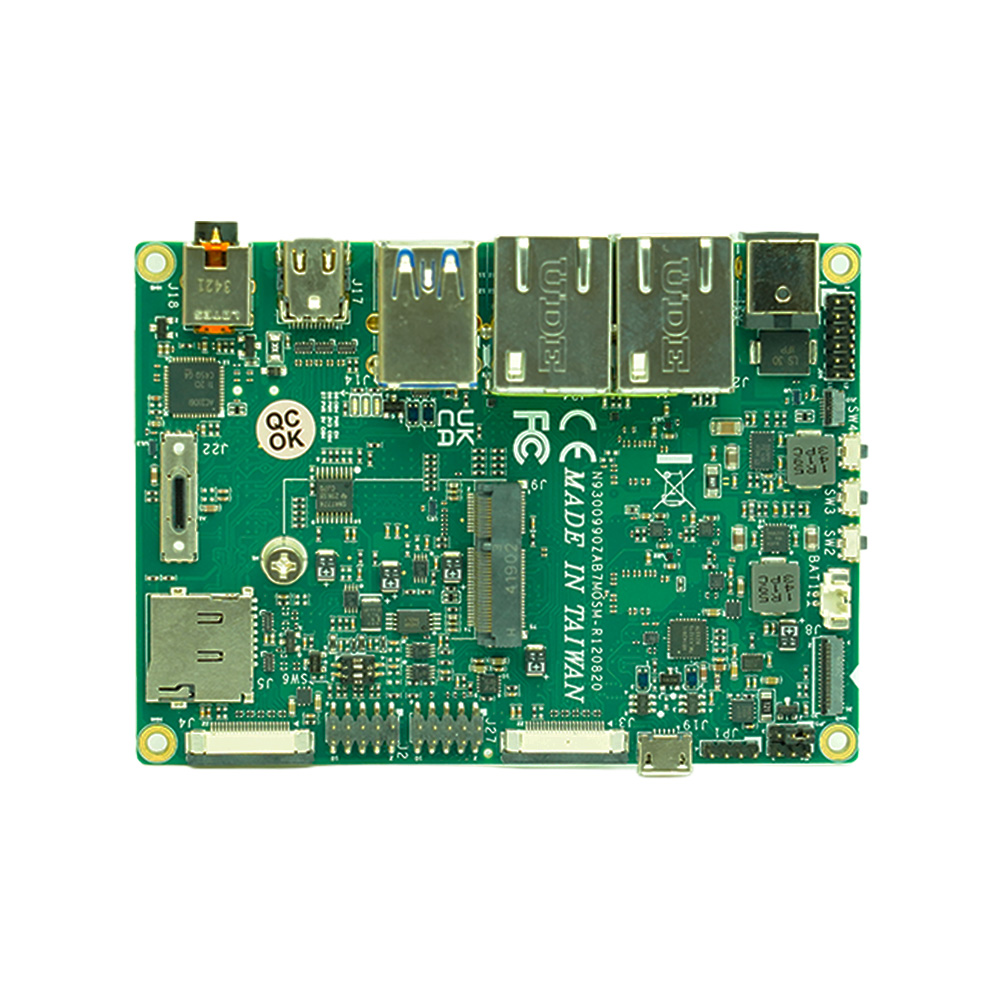

MOSM-R120 - Image 3

Features

  • Open Standard module EVK with 662 pins
  • OSM LGA to PICO-ITX carrier board
  • Legacy I/O and high-speed interface implemented
  • Rich I/O & expansion boards support
  • PICO-ITX industrial form factor
  • 9-36V wide voltage input
The MOSM-R120 is a premier OSM-L Evaluation Kit designed for high-performance applications in an ultra-compact footprint. Featuring a PICO-ITX (100 x 72 mm) industrial carrier board, it seamlessly adapts the 662-pin OSM LGA module to a pocket-sized platform. With comprehensive support for legacy/high-speed I/O and 9-36V wide voltage input, it offers an ideal environment for rapid validation of Industrial AIoT solutions where space is at a premium.

General
OSM Standard v1.2 Support OSM Size-L SoC module
Power Input 9~36V power input

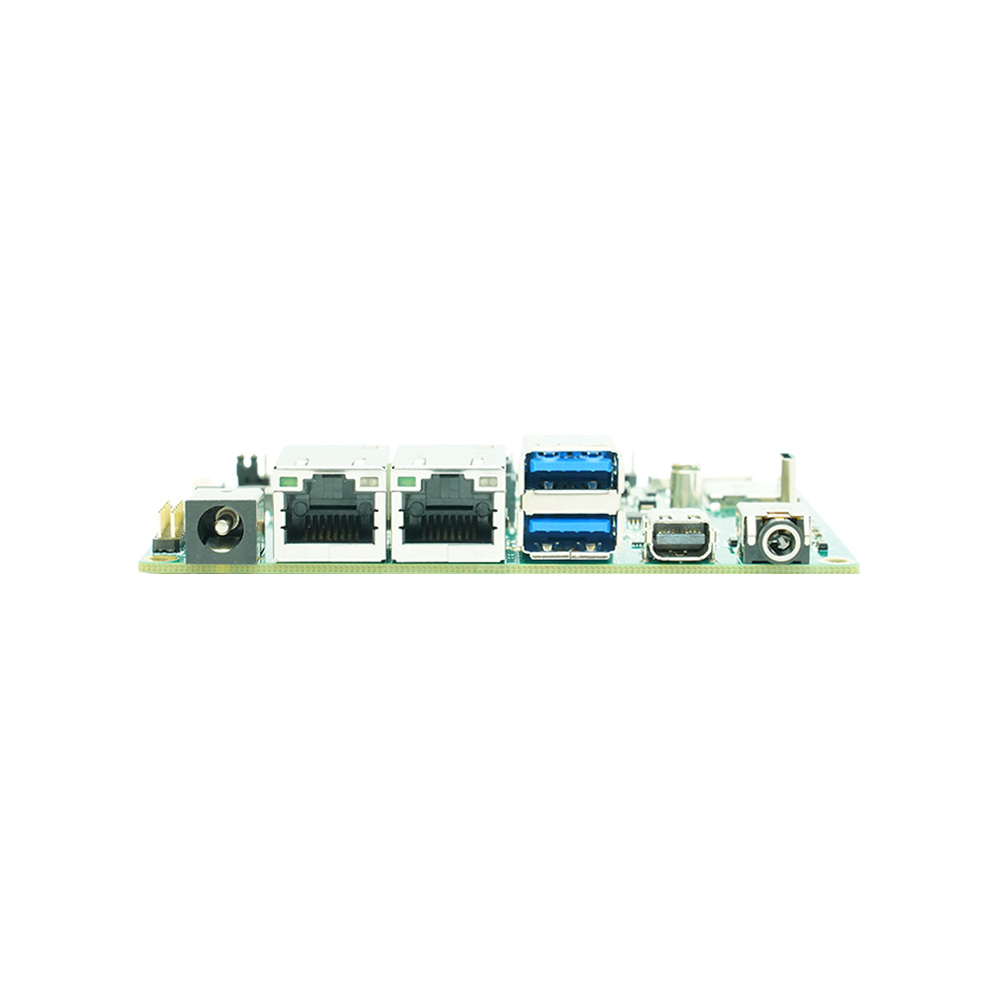

I/O Interface
Audio I2S with combo jack
PCIe 1x PCIe Gen3 with M.2 2230 Key E
USB 1x USB OTG(micro USB)
1x USB 3.0 Type-A
1x USB 3.0 Type-A
Display 1 ×MIPI-DSI (4-lane)
1 x DP
Expansion 1x eDP_Afor eDPor HDMI add-on card
Mechanical
Form Factor PICO-ITX
Dimension 100 mm(L) x 72 mm (W)
Environmental
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 5 % to 95 % RH (non-condensing)
