MQ7-C350

Qseven Evaluation Kit

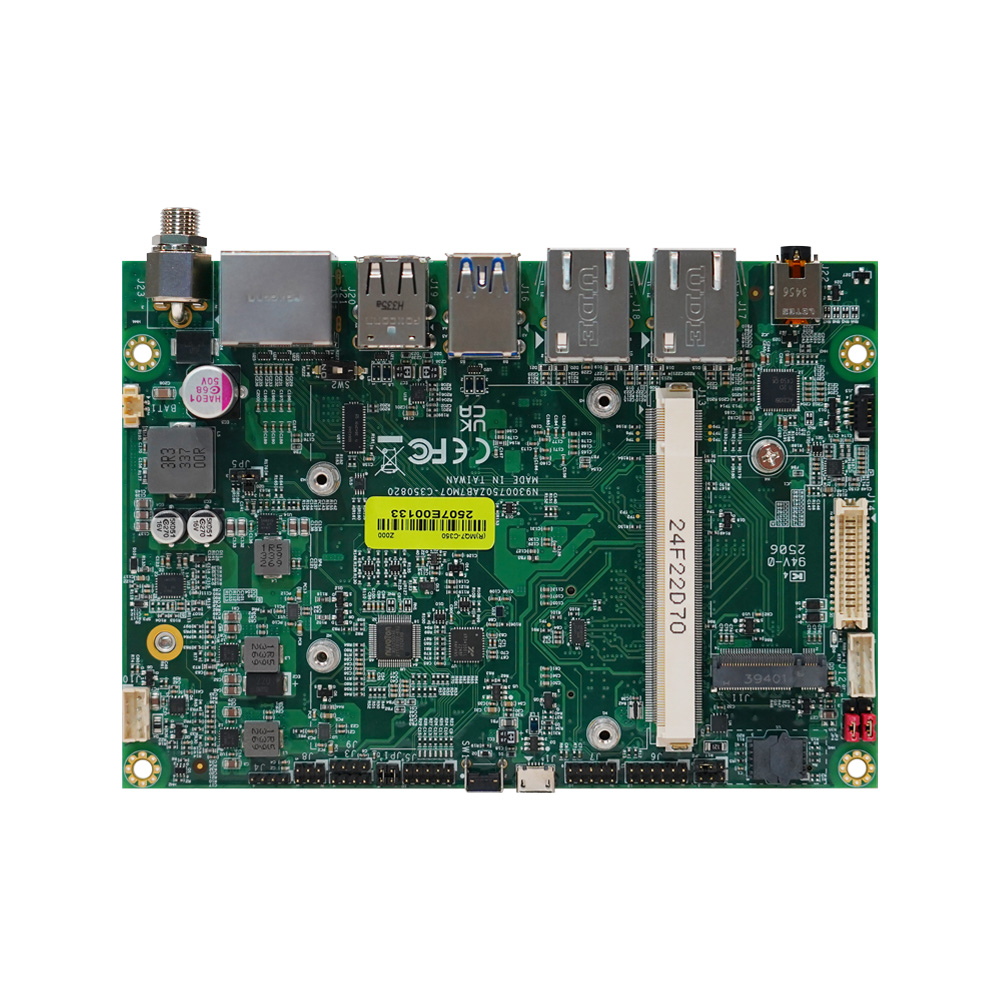

MQ7-C350
MQ7-C350 - Image 2

Features

  • Dual-Platform support x86 & ARM
  • 3.5″ compact size with Qseven standard carrier
  • Wide voltage input & versatile I/O
  • Modular design for flexible expansion
  • Industrial-Grade reliability for harsh environments
The MQ7-C350 Qseven Module redefines embedded computing with its unique Dual-Platform support for x86 & ARM architectures, housed in a compact 3.5” footprint utilizing a Qseven standard carrier. Engineered for versatility, it features a wide voltage input, versatile I/O, and a modular design enabling flexible expansion and customization, all while delivering Industrial-Grade reliability for dependable operation in harsh environme.

General
Form FactorSupport 3.5” compact with Qseven standard carrier
(Implied by “MXM Connector Qseven”)
Dimension145mm(L) x 100mm (W)
Power InputStandard Input : DC 9-36V

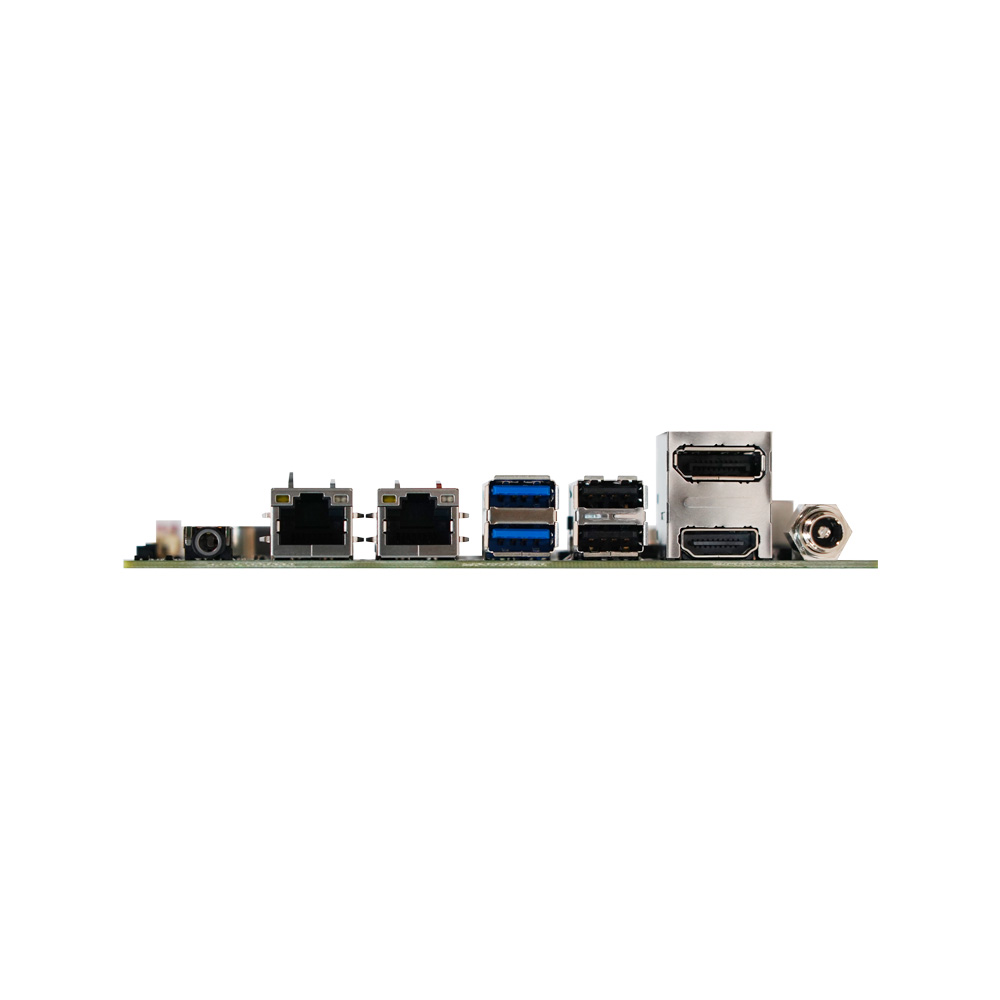

I/O Interfaces
Display1x DP (selectable)
1x HDMI (selectable)
1x LVDS (LVDS Connector)
USB1x Micro USB (support OTG)
2x USB2.0
2x USB3.0 Type-A
Storage1xM.2 Key-M 2280
1xM.2 Key-B 2242
1x Micro SD Card Slot (SDIO)
Ethernet2x GbE RJ45 LANI
GPIO1x GPIO group (8 bit per group)
I2C2x I2C HDR
COM1x RS 232/ 422/ 485 (Selectable)
Audio1 x combo audio jack
Expansion1x M.2 Key-M 2280
1x M.2 Key-B 2242
Environmental
Storage Temperature-40°C ~ 85°C
Operating Temperature0°C ~ 60°C
Relative Humidity0 %~ 95 % (non-condensing)
