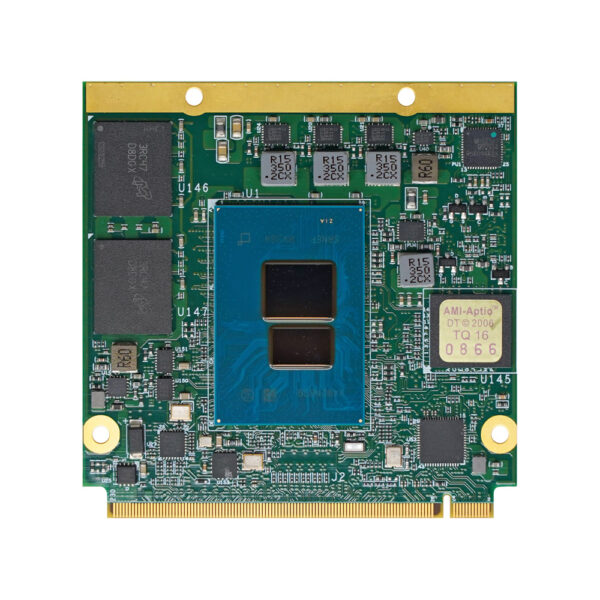

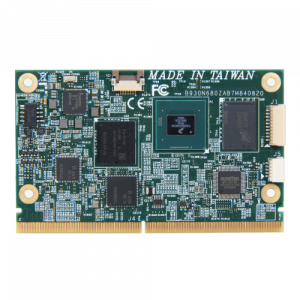

Qseven® Module with Intel® Atom Lake family processor
| General | |
| CPU | Intel® Atom® x7211RE, Dual cores, 1.0 GHz, 6W TDP Intel® Atom® x7213RE, Dual cores, 2.0 GHz, 9W TDP Intel® Atom® x7433RE, Quad cores, 1.5 GHz, 9W TDP Intel® Atom® x7835RE, Octo cores, 1.3 GHz, 12W TDP |
| Memory | Onboard 2G/ 4G/8G LPDDR4 with 4800 MT/s Single memory channel, 32bit x 2 In Band-ECC (Intel® Atom® CPU) |
| Storage | Support onboard eMMC 5.1 flash up to 256GB |
| Cache | 1.5 MB L2 cache |
| Ethernet | Intel® I226IT |
| DisplayPort Interface | |
| DDIA | 24-bit Dual Channel LVDS up to 1920×1200@60Hz |
| DDIB | DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz Or HDMI 2.0b up to 4K(4096×2160) @60Hz |
| Audio | Intel® HD Audio integrated in SoC |
| I/O interfaces | |
| PCIe | 4x PCIe Gen3 |
| USB | 2x USB3.0, 6x USB2.0 |
| SATA | 2x SATA 3.2 |
| Video Interface | |
| GPU Feature Support | Intel® Gen 12 UHD Graphics driven by Intel Xe architecture | OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG HDCP 1.4/2.2 for 4K premium content protection |
| Other Interfaces | 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, WDT 1x CAN (option), 1x I²C, 1x HDA, 1x PWM, 1x SMBus, 14x GPIO, 1x UART, 1x WDT, 1x FAN Control |
| Embedded BIOS | |
| Embedded BIOS | AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen |
| Mechanical and Environmental | |
| Form Factor | Qseven® 2.1 │70x70mm |
| Operating Temperature | Industrial: -40°C to +85°C, w/ 0.5m/s airflow |
| Humidity | 0-95% RH, non-condensing |
| Power Management | ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR) |
| Standard Input | 5V DC ±5% |
| Operating System | |
| Standard Support | Microsoft® Windows 10 IOT Core/ Enterprise (64-bit), By project request: Yocto LTS kernel 2022 |
