MQ7-M41

Qseven®Module with Intel® Twin Lake family processor

MQ7-M41

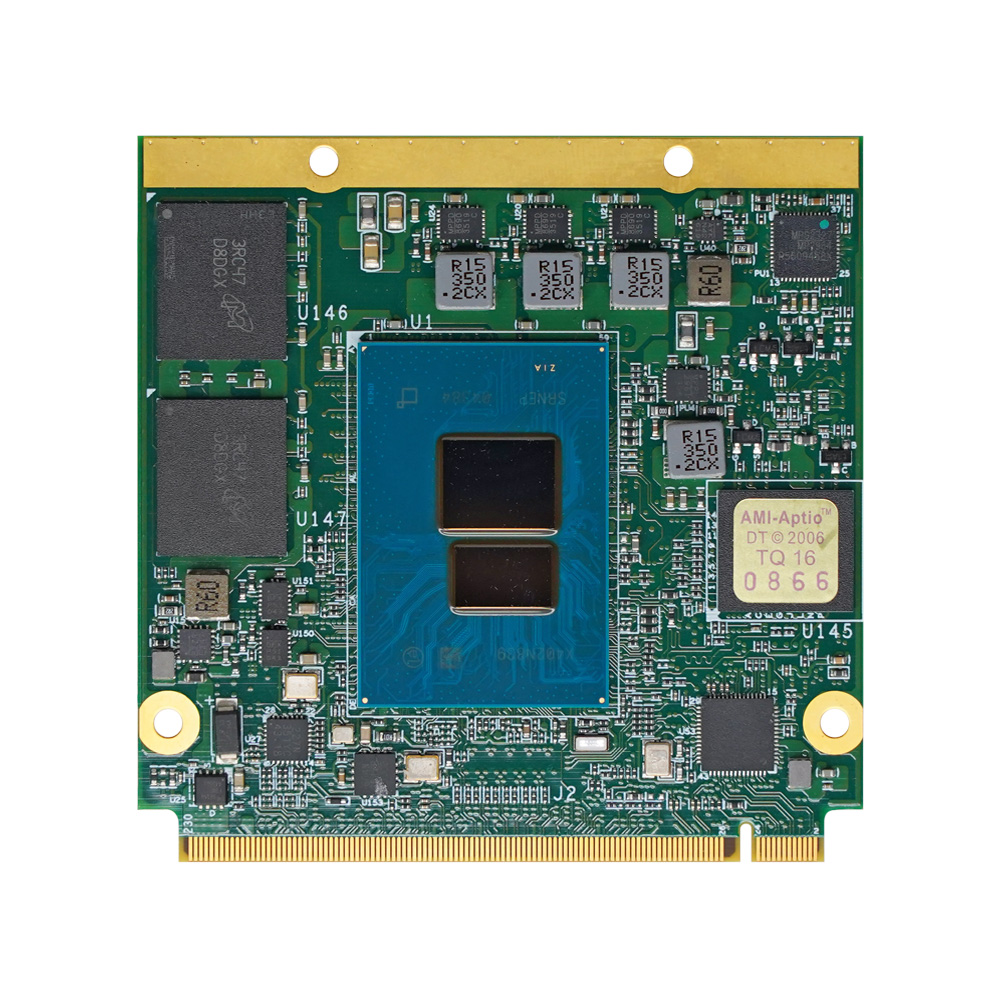

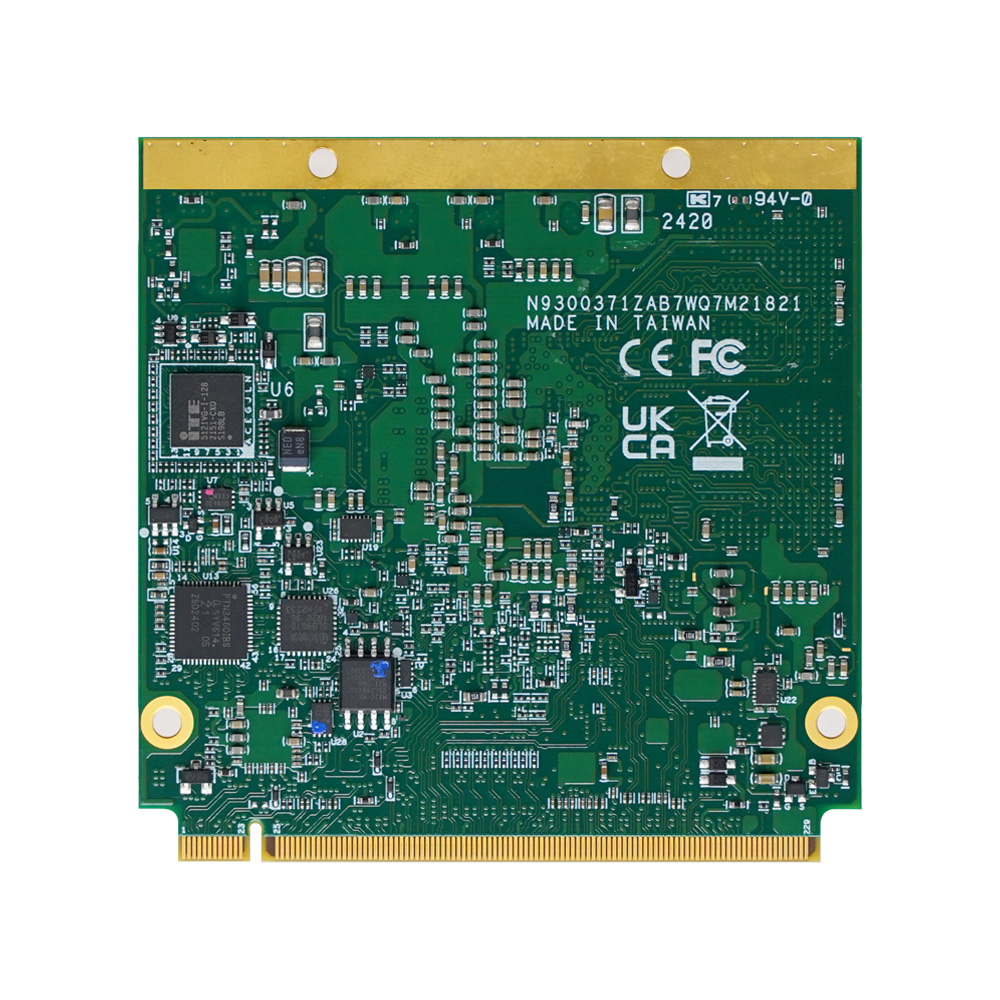

MQ7-M41 - Image 2

Features

  • Intel® Atom N150 ® processors family
  • Support 24-bit LVDS, DP/DP++ output
  • Support four PCI Express Gen3 lanes
  • Support two USB 3.0, eight USB 2.0
  • Options for eMMC 5.1 storage
The MQ7-M41 is a Qseven® standard Computer-on-Module powered by the Intel Atom® N150 processor family (Intel® Twin Lake). The module offers robust display capabilities, supporting 24-bit LVDS and HDMI output. It provides high-speed expandability via four PCI Express Gen3 lanes and supports connectivity through two USB 3.0 and six USB 2.0 ports. Customers also have the option for eMMC 5.1 storage. With its comprehensive I/O and compact design, the MQ7-M41 is an ideal choice for digital signage, industrial control, and embedded applications.

General
CPU Intel® Atom® N150, Quad cores, 6W TDP
Memory Onboard 2GB/ 4GB/8GB LPDDR5 with 4800 MT/s
Single memory channel, 32bit x 2
In Band-ECC (Intel® Atom® CPU)
Storage Support onboard eMMC 5.1 flash up to 256GB
Cache 1.5 MB L2 cache
Ethernet Intel® I226-IT
DisplayPort Interface
DDIA 24-bit Dual-Channel LVDS up to 1920×1200@60Hz
DDIB DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz
or HDMI 2.0b up to 4K(4096×2160) @60Hz
Audio Intel® HD Audio integrated in SoC
I/O interfaces
PCIe 4x PCIe Gen3
USB 2x USB3.0, 6x USB2.0
SATA 2x SATA 3.2
Video Interface
GPU Feature Support Intel® Gen 12 UHD Graphics driven by Intel Xe architecture |
OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG
HDCP 1.4/2.2 for 4K premium content protection
Other Interfaces 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, WDT
1x CAN (option), 1x I²C, 1x HDA, 1x PWM, 1x SMBus,
14x GPIO, 1x UART, 1x WDT, 1x Fan Control
Embedded BIOS
Embedded BIOS AMI UEFI with Fast Boot support l Display Auto Detection l
Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form Factor Qseven® 2.1 │70 mm x 70 mm
Operating Temperature Industrial: 0°C to 70°C, with 0.5 m/s airflow
Humidity 0% to 95% RH, (non-condensing)
Power Management ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR)
Standard Input 5V DC ±5%
Operating System
Standard Support Microsoft® Windows 10/11 LTSC
