SMARC TM Module with Intel® Apollo Lake family processor

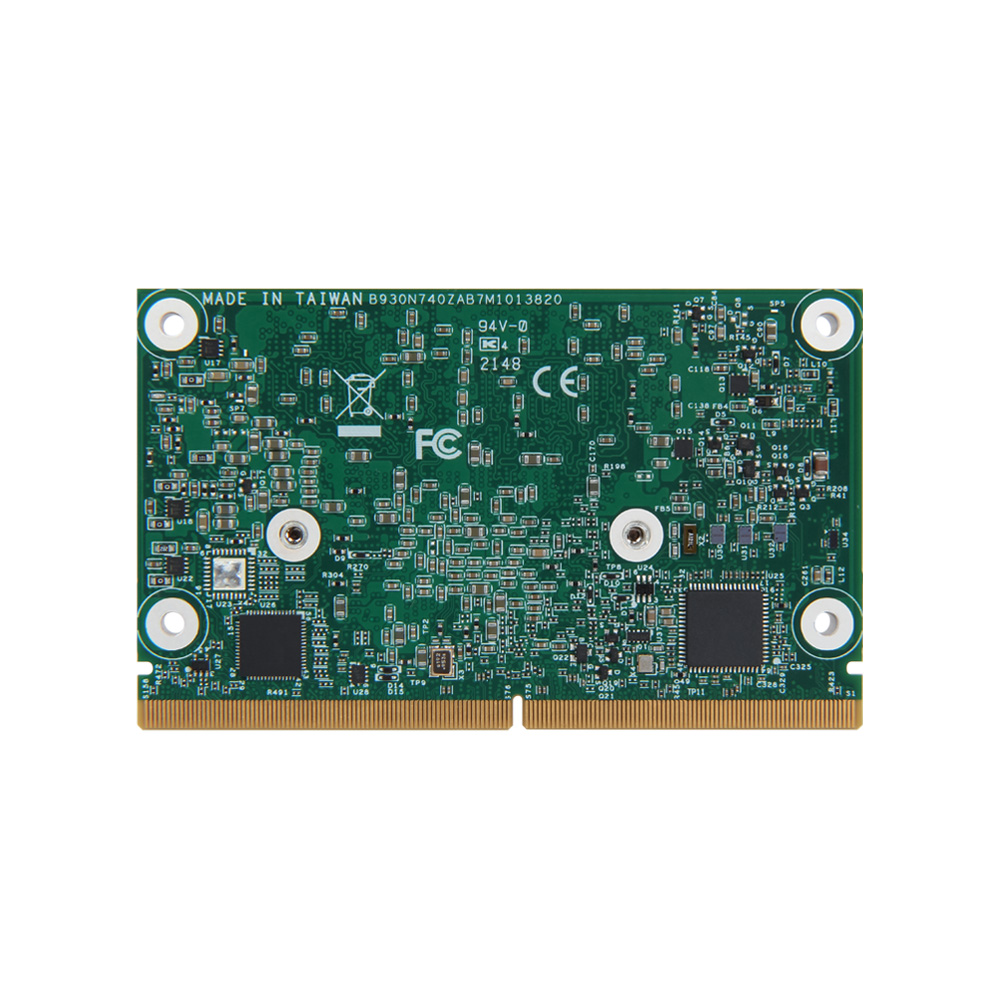

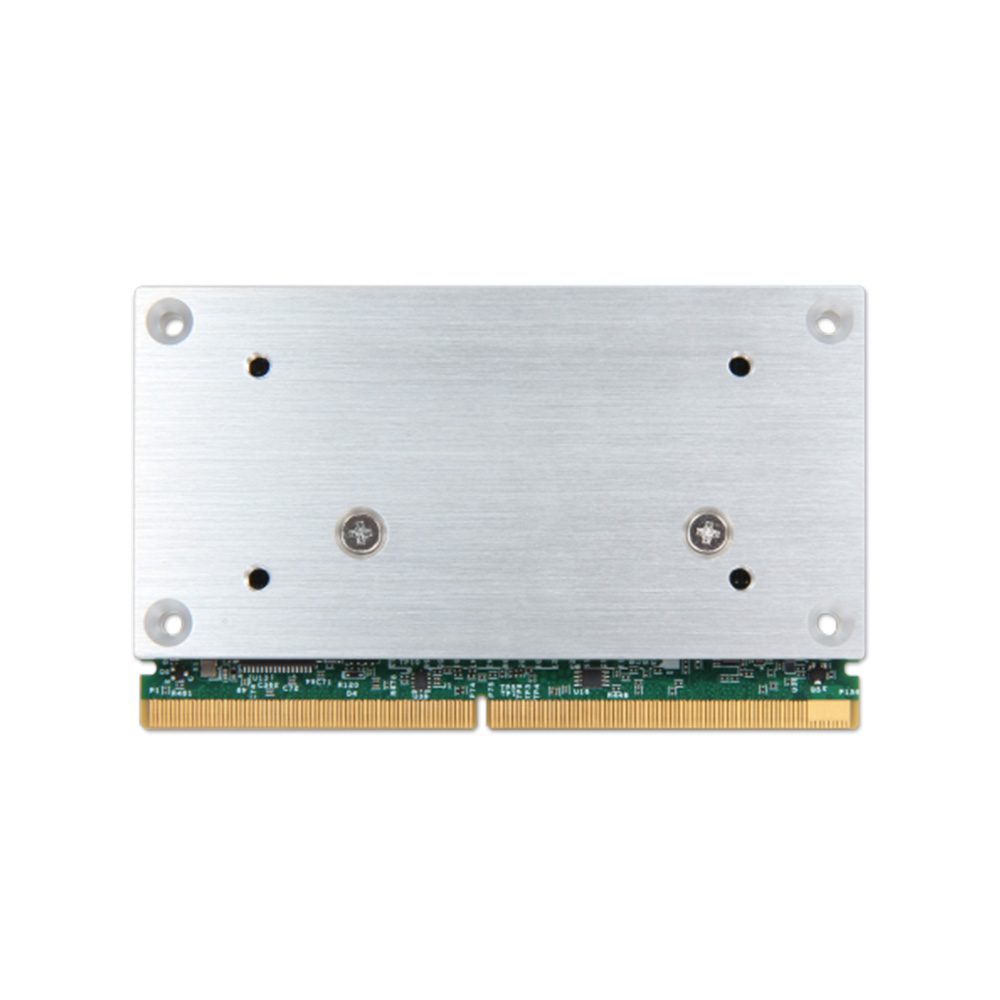

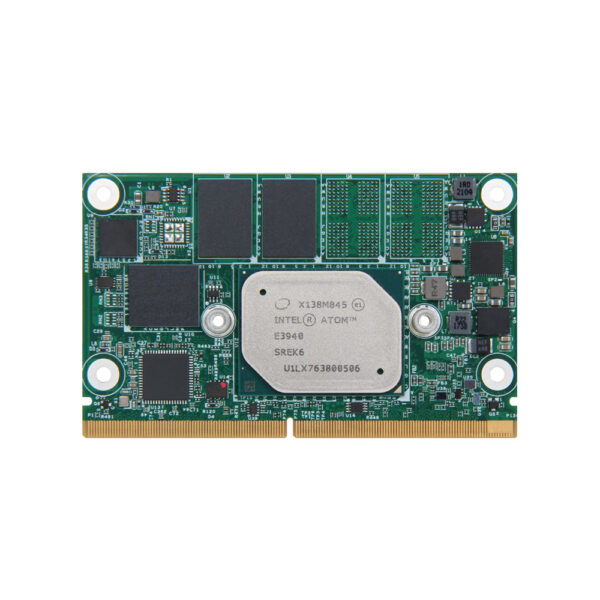

PSMC-M1013, Mitwell’s SMARC2.0 Module with X86 platform. The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer Module definition targeting applications that require low power, low costs, and high performance. There are two form factors, 82 x 80 mm and smaller form factor, 82 x 50 mm which is the size applied on PSMC-M1013. The SMARC connector use total 314 edge fingers that mate with MXM connector. The PSMC-M1013 is powered by Intel Atom® processor E3900 series, Intel® Celeron® processor N3350, and Intel® Pentium® processor N4200 platform, formerly Apollo Lake, a new generation of its predecessor, Braswell. PSMC-M1013 has many advantages such as better computing and graphics engine, 4K display (3840 x 2160 @ 30Hz) but lower power consumption. The on-board LPDDR4 RAM as another feature may support data transfer speeds of up to 2400MHz which reaches nearly 30% faster than DDR3L.
| General | |
| CPU | Intel® Atom E3930, 2 cores, 1.3 GHz / 1.8 GHz, 6.5W TDP |
| Cache | 2 MB L2 cache |
| Memory | Up to 8 GB LPDDR4 at 2133/2400 MT/s |
| Storage | eMMC 5.0 onboard flash up to 64 GB |
| DisplayPort Interface | |
| LVDS | 24-bit Dual Channel LVDS up to 1920×1200@60Hz (default) |
| DDI1 | DisplayPort 1.2 up to 4096×2160@60Hz (DP++) |
| Camera Interface | 1 × MIPI-CSI-2 (2-/4-lane), 1x MIPI-CSI 2 lanes |
| Ethernet | Up to 2x Intel® I210AT (Commercial) / I210IT (Industrial) |
| I/O Interfaces | |
| PCIe | 4x PCIe x1 or 1x PCIe x4 Gen2 |
| USB | 4x USB 2.0, 2x USB 3.0/2.0 |
| SATA | 1x SATA 3.0 (6 Gbit/s) |
| Other I/O Interfaces | 1x SDIO, 1x SATA 3.0, 4x I²C, 1x I²C/SMBus(Option), 1x LPC, 2x HSUART |
| Video | |
| GPU Feature Support | Intel®Gen 9 LP Graphics supporting DirectX 12 | OpenGL 4.3 |
| Embedded BIOS | AMI UEFI with Fast Boot support l Display Auto Detection l |
| Mechanical and Environmental | |
| Form Factor | SMARC 2.0 |
| Dimension | SMARC Module, 82 mm × 50 mm |
| Operating Temperature | Commercial: 0°C to 60°C |
| Humidity | 10% to 90% RH (operating), (non-condensing) |
| Power | |
| Standard Input | 5V DC ±5% |
| Power Management | ACPI 5.0 compliant |
| Power Consumption | 6W~12W (CPU) |
| Operation System | Windows 10 Enterprise, Windows 10 IoT, Linux |
