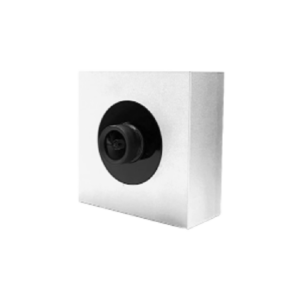

RAYI-3-x7211RE

The smallest Edge AI PC with Intel®  Amston Lake.

RAYI-3-x7211RE

Features

  • All-in-one Design with 2MP Camera
  • Ultra-small form factor (55mm x 55mm) optimized for embedded applications
  • Low-power circuit design with USB Type-C connectivity
  • Onboard 8G LPDDR5 memory and 64GB storage
  • Wi-Fi 6 and USB 3.0 for seamless integration
  • Supports OpenVino™ for real-time AI applications
  • Industrial-grade components and robust environmental resilience
The RAYI-3-x7211RE is a revolutionary 55x55mm all-in-one embedded module with a 2MP camera and USB Type-C power.  This module boasts a low-power circuit design conveniently powered while offering robust performance with 8GB LPDDR5, 64GB storage, Wi-Fi 6, and USB 3.0. Optimized for real-time AI with OpenVino™ and built with industrial-grade components, it guarantees reliable operation in harsh environments.

General
CPUIntel® x7000RE series processor (default: x7211RE)
MemoryLPDDR5: 8GB/16GB (default: 8GB)
Mass StorageeMMC up to 128GB (default: 64GB)
Power Input5V via USB Type-C
Operation SystemWindows® 10/11 IoT Enterprise
Linux Yocto
Basic I/O Interface
Power ConnectionUSB type C (PD)
Power to RTC and BIOS CMOS
USB1x USB 3.0 Type-C
DisplaySupports Full HD 1080P HDR
1x micro HDMI 1.4
ConnectivityWi-Fi 6 on board
Camera2MP camera (USB)
Environment
Operating Temperature0°C ~ 50°C
Storage Temperature-40°C ~ 70°C
Relative Humidity10 to 90% non-condensing
Mechanical
Dimension55mm (L) x 55mm (W) x 36mm (H)
