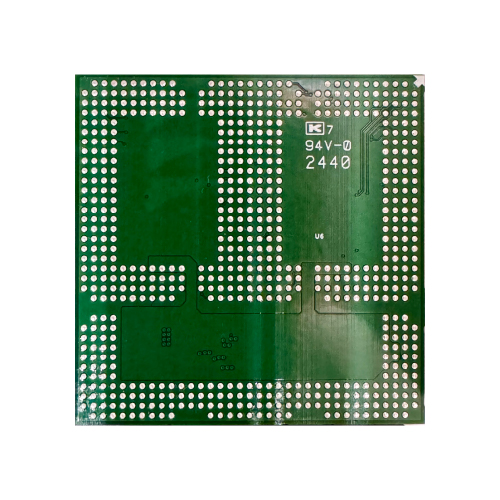

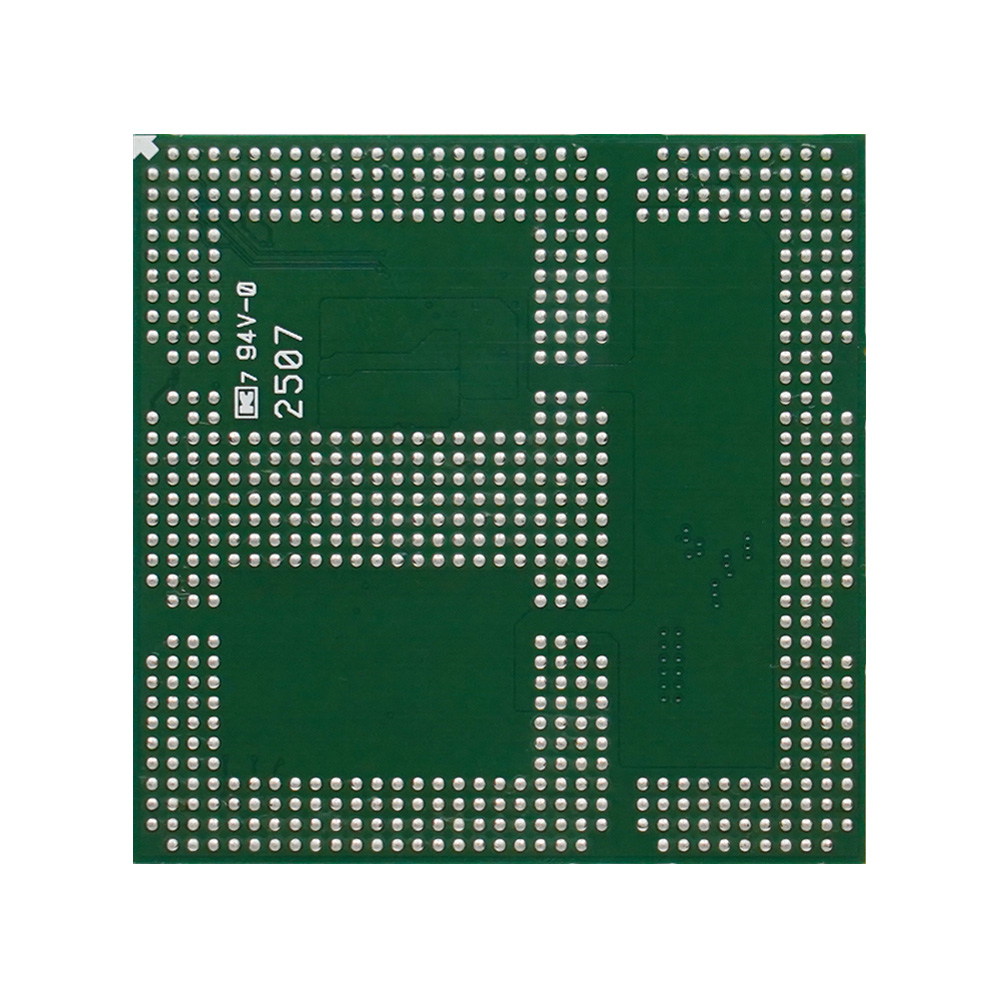

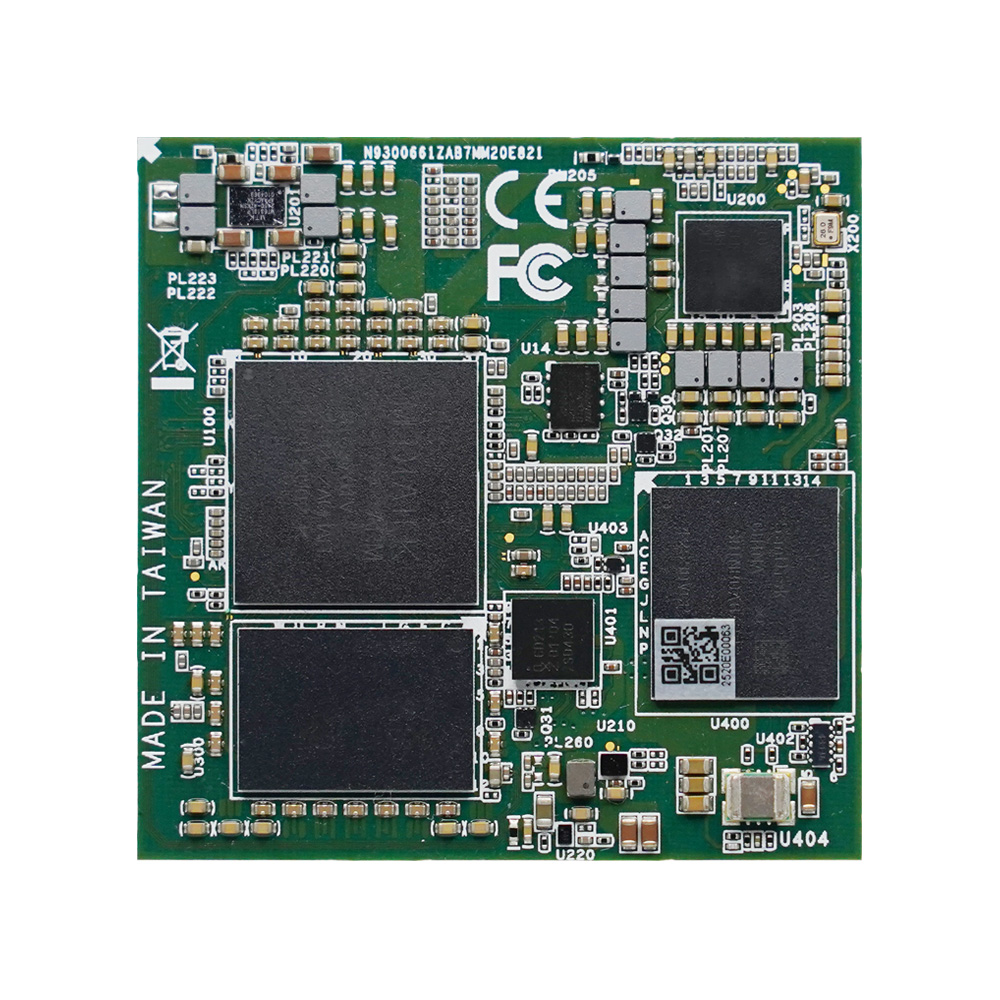

OSM-L with MediaTek Genio 510 processor
The Open Standard Module™ specification allows developing, producing and distributing embedded modules for the most popular ARM and x86 architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.
| General | |
| OSM Standard v1.1 | Support OSM Size-L SoC module |
| CPU | MediaTek Genio 700 2 x A78 2.2 GHz + 6 x A55 2.0 GHz MediaTek Genio 510 2 x A78 2.0 GHz + 4 x A55 2.0 GHz |
| Storage | 1x 32GB onboard eMMC 5.1 flash 64GB by project |
| Memory | 1x 4GB onboard LPDDR4, 3733MT/s 8GB by project |
| Power Input | 5V DC |
| Operating Systems | Android 13 Embedded Linux (Yocto distribution) |
| I/O Interface | |
| Audio | 1x I2S |
| PCIe | 1x PCIe (Gen3) |
| USB | 3x USB2.0/ (2 ports with dual role) 1x USB3.0 |
| Display | 1x HDMI or DP 1x MIPI DSI 1x DSI |
| Video | Integrated in CPU |
| Camera | 1x 4 lanes CSI |
| Ethernet | 1x GbE LAN (RGMII) |
| Other Legacy I/O | 3x GPIO, 2x I2C, 3x UART 2x SPI, 2x CAN Bus, 2x SDIO (4bit) 2x ADC, 4x PWM, 1x JTAG |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.1 OSM Size-L 662 pins |
| Dimension | 45mm(L) x 45mm (W) |
| Environmental | |
| Operating Temperature | -20°C to 85°C |
| Relative Humidity | 5 % to 95 % RH (non-condensing) |
