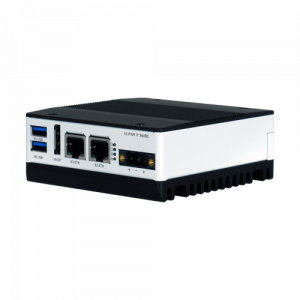

Compact-size Rugged System RSQ10 with Intel® Elkhart Lake family processor and Wireless Kit that expanded M.2 slots for 5G and Wi-Fi communications


  • Intel® Atom®processors (“Elkhart Lake”), up to 4 cores (optional)
  • Support Hailo-8™ AI Accelerator, up to 26 TOPS
  • 8GB onboard LPDDR4 memory
  • 2x 2.5 GbE, 2x USB 3.0 and 1x DP
  • Intel Industry real-time networking supported (optional)
  • Expansion board supporting for customized requirements
  • Compact system size in 10cm x 10cm x 5.65cm
  • 64GB onboard eMMC 5.0 storage
RSQ10-WK is based on MW rugged system RSQ10 in compact size dimension 100 x 100 x 48mm and added expansion board for wireless communications. The Wireless Kit expansion adopted latest M.2 slots supporting 2230/2242/3042/3052 form factors for various WI-FI or 5G M.2 modules.

HousingAluminum housing
Moumting typeWallmount and Dinrail
CoolingFanless, cooling with heatsink
CPUIntel® Atom® x6413E, 4 cores, 3.0GHz/1.5 GHz, 9W TDP
StorageeMMC 5.0 onboard flash 64GB up to 256 GB
MemoryOn Board LPDDR4 up to 16GB, 3200 MT/s
One memory channel, 64bit with In-Band ECC
Power Input9~36V
Indicator LEDError :over heat (Red)  / throttling (orange)
EC ready : ready (green) / off
power : S0 (green) / S3.S4.S5 (off)
M.2 Storage : green / off
Operating SystemsWindows® 10 IoT Enterprise / Linux
Expansion1 x M.2 Key M 2242 (SATA)
Basic I/O Interface
Power Connection1 x 3-pin screw-type terminal block
Ethernet2 x 2.5 GbE (Intel® i226)
USBUSB3.2 Gen2 x1
Display1 x DP v1.4 4096 x 2160 @ 60Hz

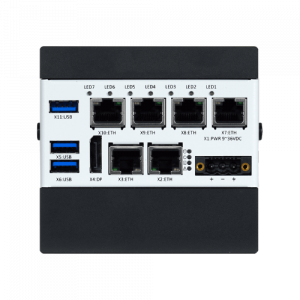

Extend I/O Interface
USBUSB3.2 Gen2 x1
LED7 user define LED
Expansion1x M.2 E Key 2230 Wi‐Fi module,1x M.2 B Key 2242 PCIE storage or 3042/3052 cellular module,1xNano SIM slot.
Operating Temperature -20°C ~ 50 °C with airflow
Storage Temperature-40 °C ~ 85 °C
VibrationWall mount-  MIL-STD-810G 514.7C-V Category-4 / Din Rail – 1G (DIN EN 60068-2-6)
ShockWall mount – 40G (EN 60068-2-27)/ Din Rail – 15G (EN 60068-2-27)
CertificationCE, FCC
