Qseven

Qseven Module was defined by the Standardization Group for Embedded Technologies (SGET). It has a standardized form factor of 70mm x 70mm or 40mm x 70mm with 230 pins in a 0.5 mm configuration. Qseven Module provides for the use of the low power x86 as well as Arm processor architectures and allows for more compact housings and thus is a perfect match for mobile and IoT applications.

Qseven® Module with Intel® Atom Lake family processor.

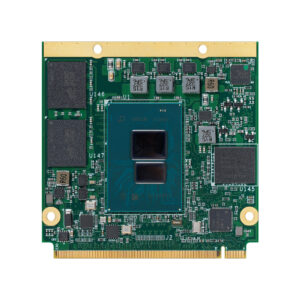

PQ7-M109 Qseven Module Based on Intel® Elkhart Lake family processors with latest LPDDR4 SDRAM up to 8GB, LVDS/eDP, HDMI/DP, and eMMC up to 256GB..
Qseven Module Based on Intel® Apollo Lake family processors with latest LPDDR4 SDRAM up to 8GB, LVDS/eDP, HDMI/DP, and eMMC.
